52kV 72.5kV 123kV 145kV 170kV 252kV 363kV Live tank Vacuum circuit breaker

discuss personally

Basic info

Brand	ROCKWILL
Model NO.	52kV 72.5kV 123kV 145kV 170kV 252kV 363kV Live tank Vacuum circuit breaker
Rated voltage	363kV
Rated frequency	50/60Hz
Series	ZW

Product Detail

Description ：

The 52kV - 363kV Live tank Vacuum circuit breakers are advanced high - voltage electrical devices. Using vacuum as the arc - extinguishing and insulating medium, they leverage vacuum's superior insulation and rapid arc - quenching capabilities to instantly interrupt fault currents, preventing arc re - ignition and ensuring grid stability. The live tank design encapsulates the vacuum interrupters within a metal tank filled with insulating gas, enhancing insulation, mechanical robustness, and environmental adaptability to withstand harsh weather and external impacts. Available in multiple voltage ratings, these breakers suit diverse high - voltage transmission and distribution scenarios, from urban power grids to industrial systems. Equipped with precise operating mechanisms, they offer long mechanical life, swift and accurate operations, minimal maintenance, excellent short - circuit current interruption, and anti - aging performance, making them an ideal choice for reliable and safe high - voltage power transmission.

Main function introduction:

Wide Voltage Range: Covers 52kV - 363kV, suitable for various high - voltage power systems.
Vacuum Arc Extinction: Utilizes vacuum for rapid arc quenching and reliable insulation.
Live Tank Design: Encased in gas - filled metal tanks for enhanced mechanical strength and environmental resistance.
Efficient Interruption: Quickly cuts off fault currents to safeguard power grids.
Low Maintenance: Long - lasting mechanical operation with minimal upkeep requirements.

Technology parameters:

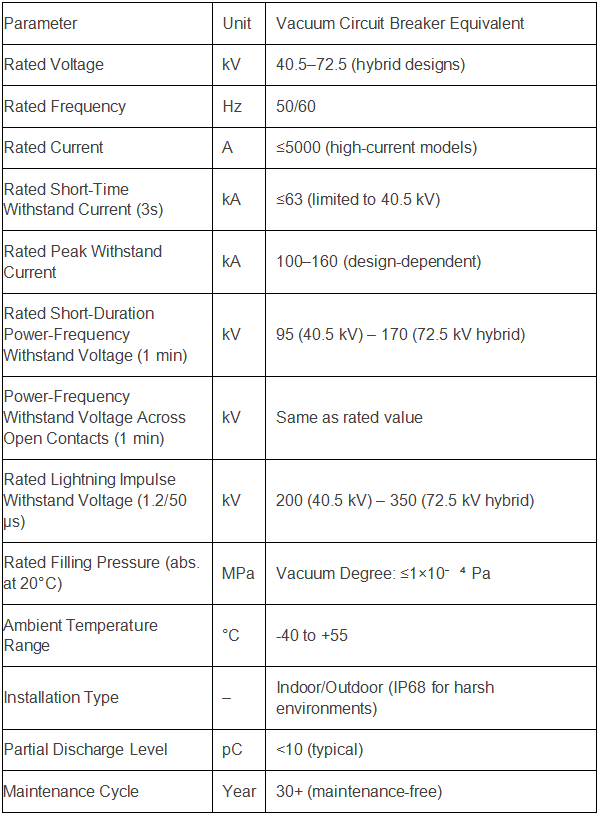

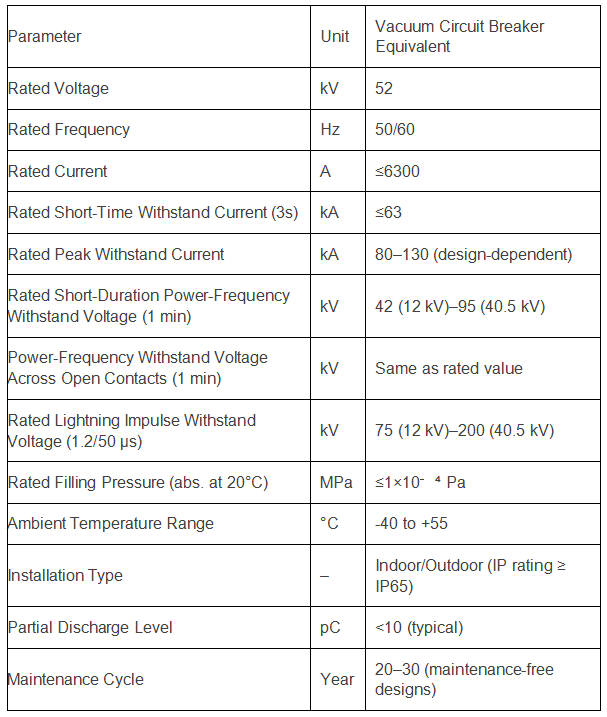

ZW-52

ZW-72.5

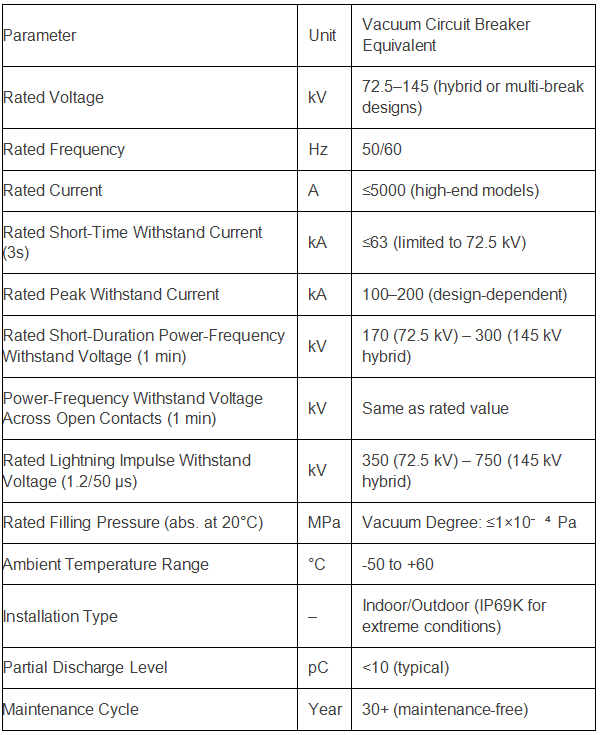

ZW-123/145

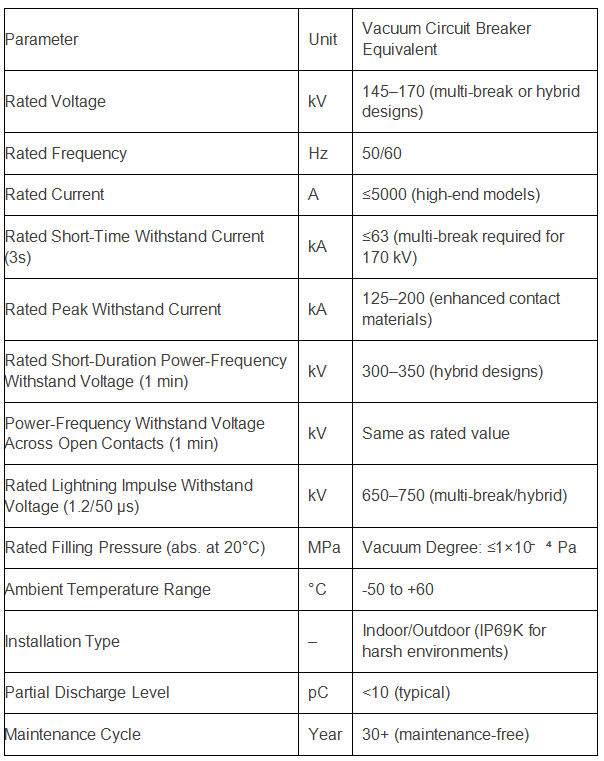

ZW-170

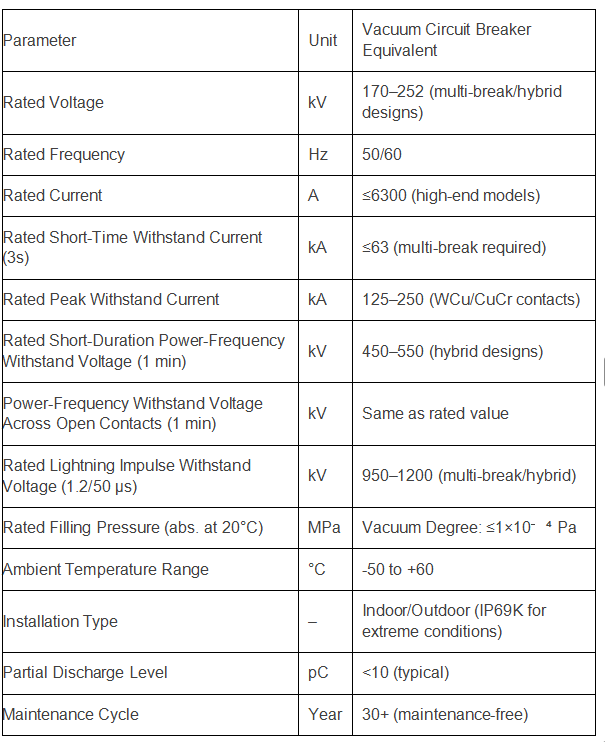

ZW-252

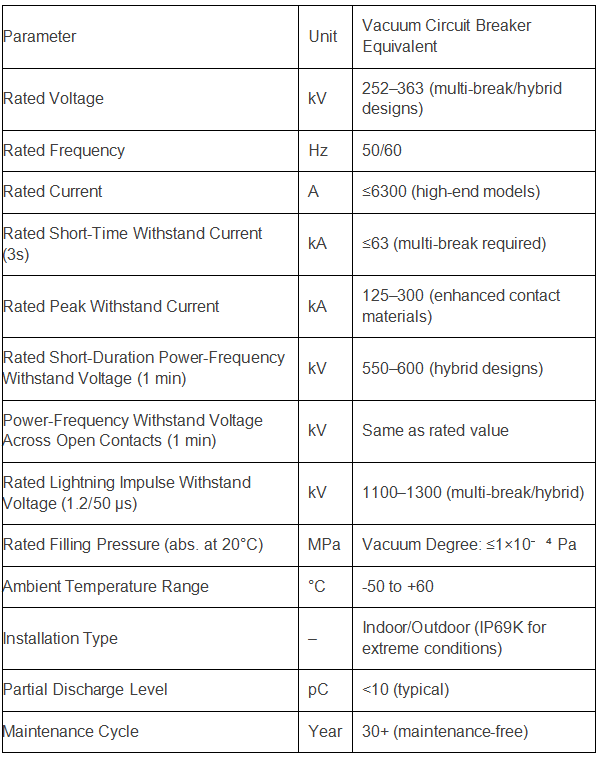

ZW-363
