Xgn15-12 MV switchgear: AC metal-clad SF6 gas-insulated cubicle for medium voltage power distribution

discuss personally

Model

Basic info Product Detail Supplier

Basic info

Brand	POWERTECH
Model NO.	Xgn15-12 MV switchgear: AC metal-clad SF6 gas-insulated cubicle for medium voltage power distribution
Rated voltage	12kV
Series	XGN15-12

Product Detail

Description

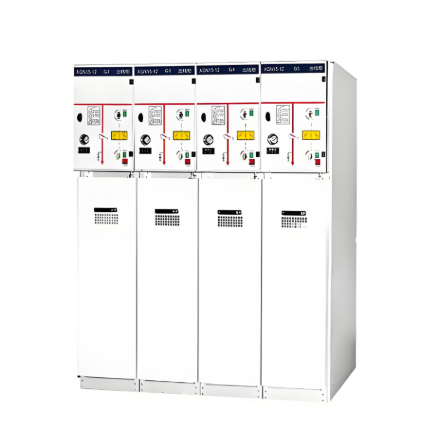

The XGN15 series represents a new generation of compact, modular air-insulated switchgear specifically engineered for ring main unit (RMU) applications in 12kV medium-voltage distribution networks. This innovative switchgear combines space-saving design with exceptional reliability, making it an ideal choice for urban power grids, industrial complexes, and renewable energy systems where both performance and footprint optimization are critical.

Features

Main Switch Options – Uses FLN36-12 / FLN48-12 SF6 load switches (manual or motorized) or compatible SFG-type SF6 switches
Breaker Compatibility – Supports VS1, VD4/S, ISM vacuum breakers or HD4/55 SF6 circuit breakers for enhanced protection
Flexible Configurations – Expandable design adapts to various grid requirements
Smart Grid Ready – Can integrate PT, CT, FTU & communication modules for automated distribution
Reliable & Safe – Features mechanical interlocks, simple operation, and easy installation Ideal for utility grids, industrial plants, and renewable energy systems, the XGN15 switchgear delivers a cost-effective, future-proof solution for MV power distribution.

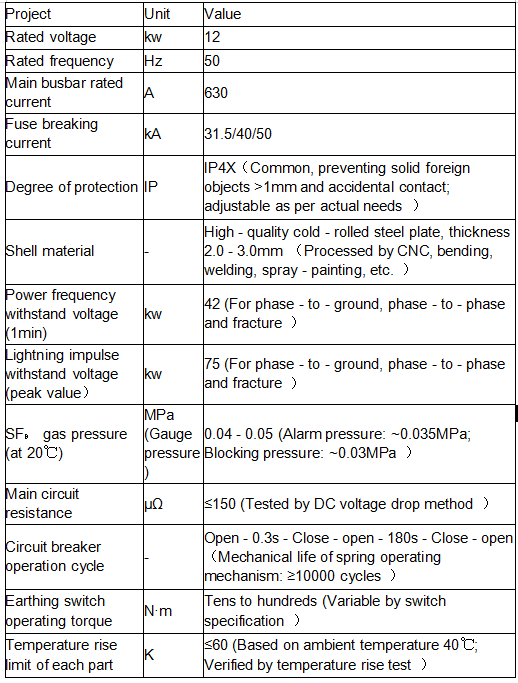

Parameters
