RM6 SeT MV Gas Insulated Switchgear

discuss personally

Basic info

Brand	Schneider
Model NO.	RM6 SeT MV Gas Insulated Switchgear
Rated voltage	24kV
Series	RM6 SeT Series

Product Detail

Description

RM6 SeT Gas Insulated Switchgear is fully insulated and sealed according to
GB and IEC standards, which does not require air replenishment during the
product life cycle.

Suitable for harsh environments
Compact design
3-position load switch: Closed - Disconnecting / Insulating– Earthing
Multiple solutions to meet more demanding requirements

Ambient temperature:

Lower than or equal to 40°C
Higher than or equal to -25°C(Please consult Schneider Electric for low
temperature use)
Altitude
≤ 1000m
Above1000m, Please consult Schneider Electric services teams
Humidity
Lower or equal to 95%(24 hours)
Lower or equal to 90%(1 month

Schematic diagram

3 functions: 3-position load switch + vacuum circuit breaker + load switch – Fuse combination electrical

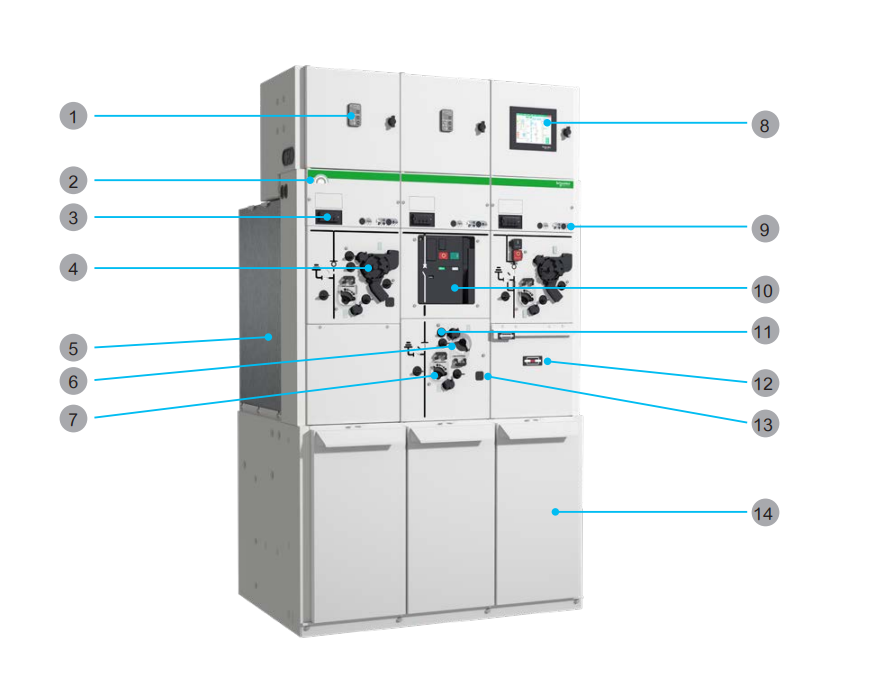

1. Distributed DTU
2. Baromete
3. Live monitor
4. Electric operation module
5. Stainless steel air box
6. Isolation switch operating hole
7. Earth switch operation hole
8.Intelligent moniroting terminal
9. Ground visual
10. Circuit breaker
11. Program locks
12. Fuse trip indication
13. Cable live locking device
14. Cable room

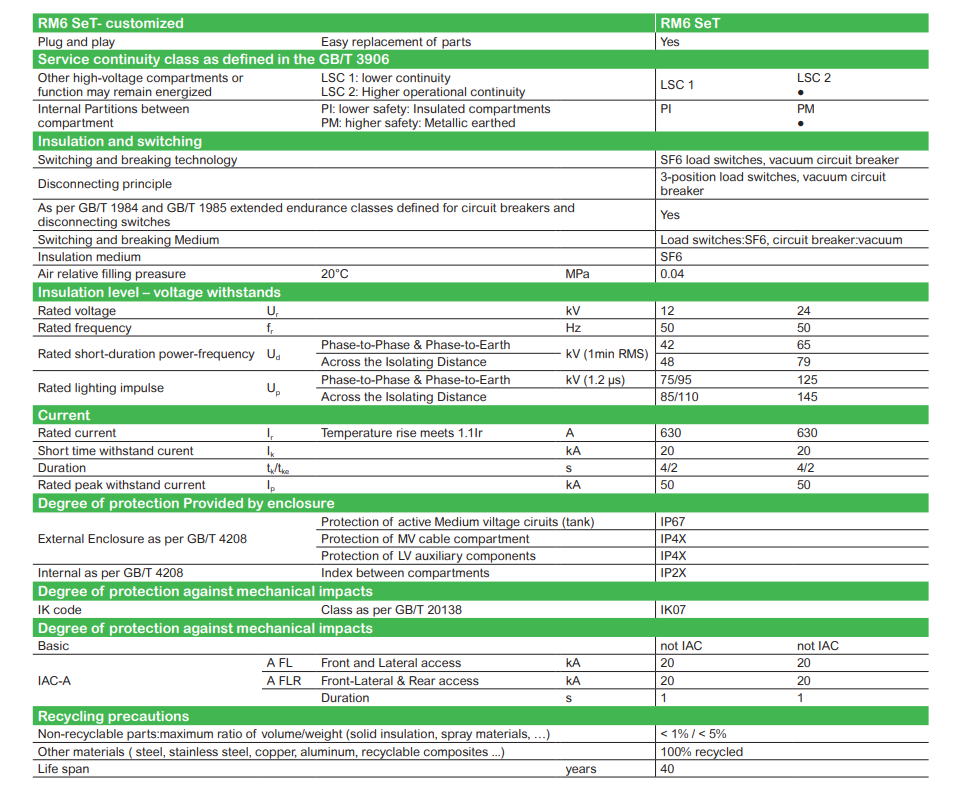

General characteristics

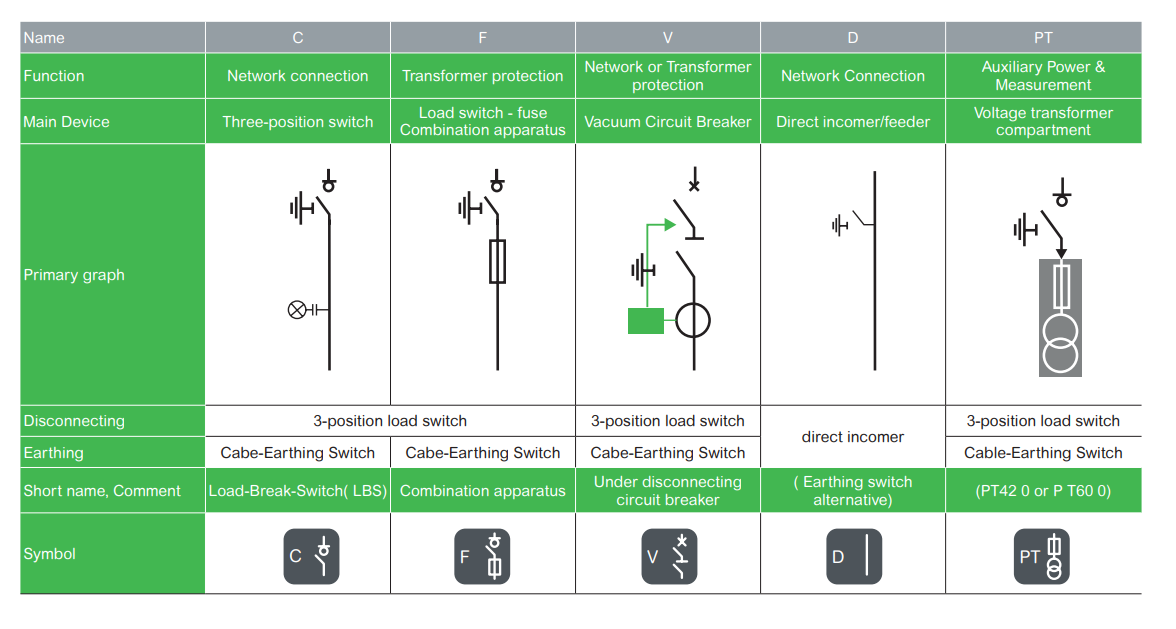

Choice of functional units

Components and accessories

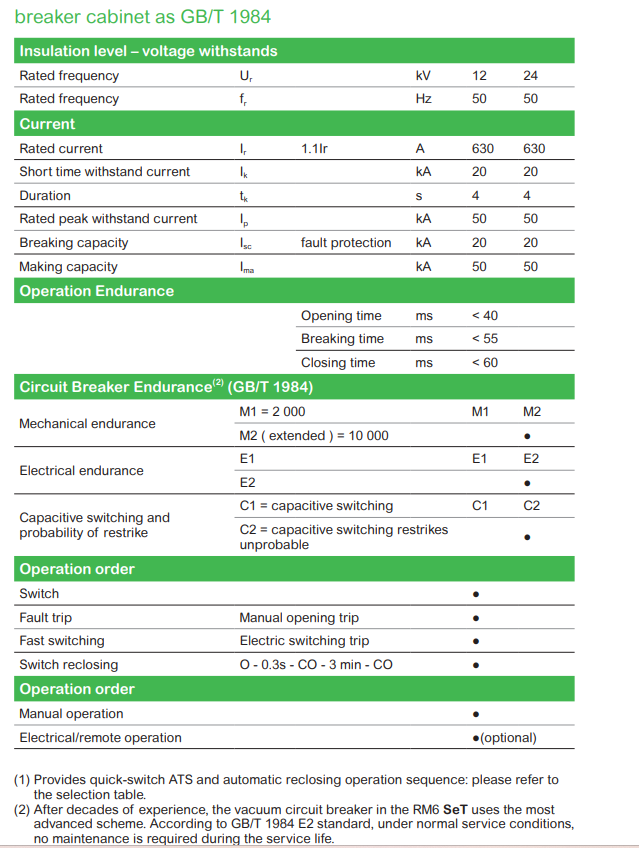

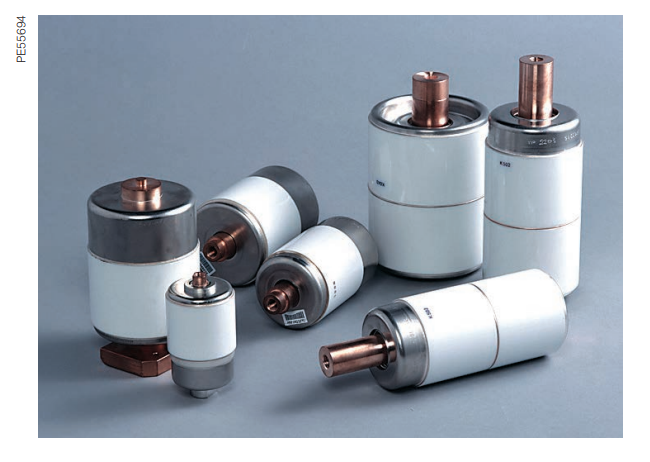

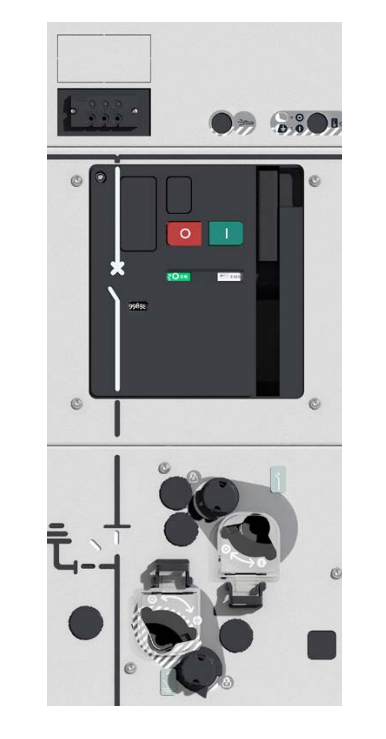

Vacuum Circuit Breaker

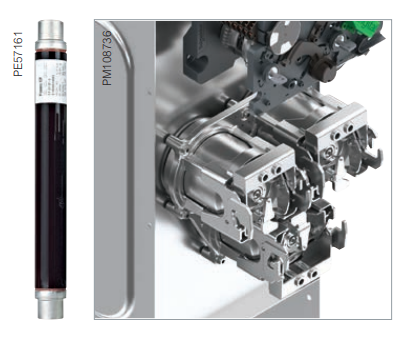

Fuse

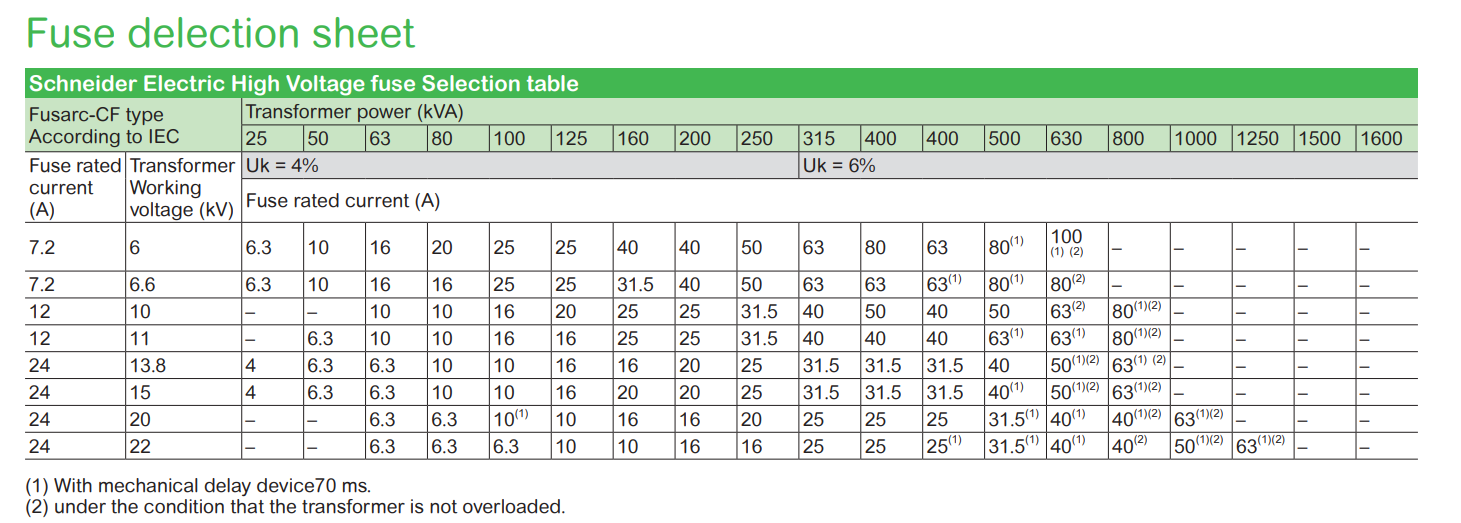

The fuse rating of the RM6 SeT protection
device depends on the following criteria:

Operating voltage
Transformer capacity
Fuse technology (manu)

Other recommendations
