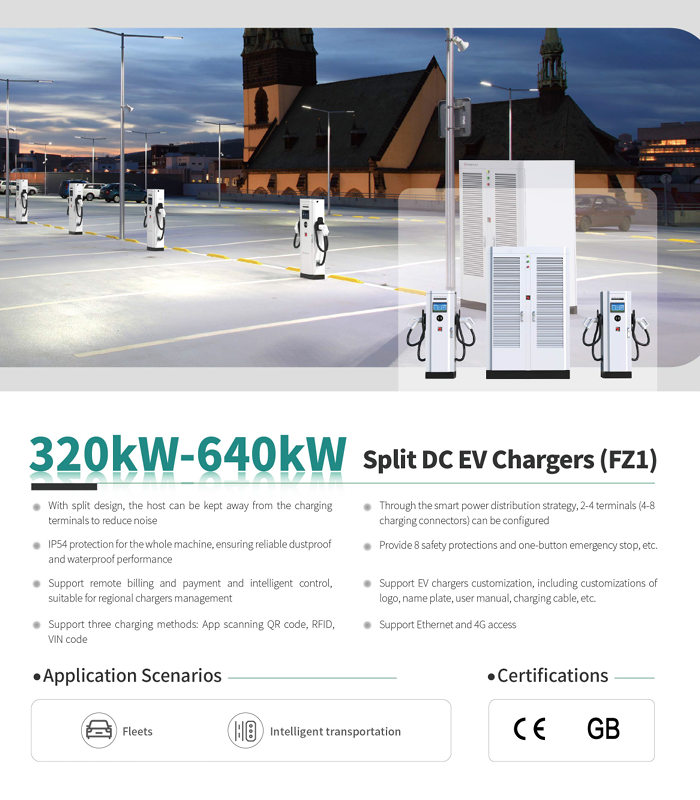

• DC 320-480-640KW EV Chargers
DC 320-480-640KW EV Chargers
$26850.00
Model
PCDC-FZ1-EU480/1k
PCDC-FZ1-EU480/1k
PCDC-FZ1-EU480/1k
PCDC-FZ1-EU480/1k
PCDC-FZ1-480/1k
PCDC-FZ1-480/1k
PCDC-FZ1-480/1k
PCDC-FZ1-480/1k
PCDC-FZ1-EU320/1k
PCDC-FZ1-EU320/1k
PCDC-FZ1-EU320/1k
PCDC-FZ1-EU320/1k
PCDC-FZ1-320/1k
PCDC-FZ1-320/1k
PCDC-FZ1-320/1k
PCDC-FZ1-320/1k

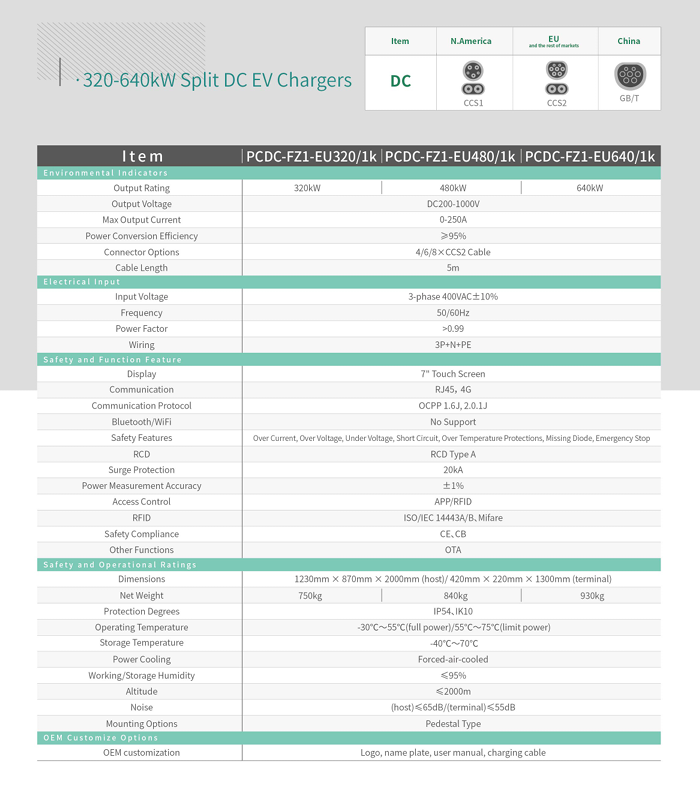

Basic info
Brand Pingalax
Model NO. DC 320-480-640KW EV Chargers
Rated Output Rating 480KW
Output Voltage DC 200-1000V
Max Output Current 250A
Power Conversion Efficiency ≥95%
Connector Options CCS2
terminals eight gun
Series DC EV Chargers
Product Detail



What are the means of grounding protection for EV chargers?

Main Technical Means of Grounding Protection

 Grounding Conductor:

  • Definition: A grounding conductor refers to a wire used to connect the metal enclosure of an electrical device to the earth.

  • Function: When an electrical device has a leakage, it provides a low - impedance path so that the leakage current can quickly flow to the earth.

 Grounding Electrode:

  • Definition: A grounding electrode refers to a metal rod or metal plate buried underground, which is used to form a good electrical connection with the earth.

  • Function: It provides a stable grounding reference point to ensure the effectiveness of the grounding system.

 Ground Resistance:

  • Definition: Ground resistance refers to the resistance between the grounding electrode and the earth.

  • Standard: The ground resistance usually needs to meet certain standard requirements. For example, it should not be more than 4 ohms (the specificvalue varies according to the regulations of different countries and regions).

  • Measurement: Regularly measure the ground resistance to ensure it is within the qualified range.


Know your supplier
Pingalax
Main Categories
New energy
Business Type
Design/Manufacture/Sales
Highest Annual Export (USD)
$100000000
Professional Experience
3 years
Workplace
6000m²
