  • 2000KVA 1600KVA 11KV 13.2KV 13.8KV Pad-Mounted Transformers
2000KVA 1600KVA 11KV 13.2KV 13.8KV Pad-Mounted Transformers
discuss personally
Model
ZGS-11
Basic info Product Detail Supplier
Basic info
Brand ROCKWILL
Model NO. 2000KVA 1600KVA 11KV 13.2KV 13.8KV Pad-Mounted Transformers
Rated voltage 11kV
Series ZGS
Product Detail

Product Description
Rockwill's pad-mounted transformers are engineered for superior performance across a comprehensive power range from 75 kVA to 5000 kVA. Our units incorporate integrated high-voltage fuses and switches for complete circuit protection, featuring innovative elbow connector technology that enables safe live-line connections and maintenance operations using hot sticks. Designed for reliability, all transformers undergo rigorous testing and comply with leading industry standards including CSA, ANSI C57, DOE, and IEEE requirements.

The ZGS11-H(Z) series represents our next-generation combined transformer solution, offering an optimized compact design that delivers exceptional space efficiency without compromising performance. These units are specifically engineered for urban load center applications, providing enhanced power distribution efficiency and improved supply quality.

Key Features & Benefits

Advanced Safety System

  • Fully sealed, oil-filled construction with complete insulation
  • Integrated high-voltage protection with visible break switches
  • Tamper-resistant enclosure with secure locking mechanism

Network Flexibility

  • Dual-mode operation for both loop and radial feed configurations
  • Plug-and-play cable connection system
  • Compatible with SCADA and smart grid applications

Premium Performance

  • Ultra-low no-load and load losses (meets DOE 2016 efficiency standards)
  • Acoustic noise levels below NEMA standards
  • 150% overload capacity for emergency operation

Robust Construction

  • Military-grade corrosion protection (ASTM B117 salt spray tested)
  • -40°C to +50°C operational temperature range
  • Seismic-rated design (Zone 4 compliance)

Smart Ready Design

  • Built-in monitoring points for IoT integration
  • Optional remote temperature and load monitoring
  • Predictive maintenance capability

Typical Applications
• Urban distribution network upgrades and expansions
• High-density residential and commercial developments
• Critical infrastructure power systems (hospitals, data centers)
• Industrial parks and manufacturing facilities
• Renewable energy interconnection points

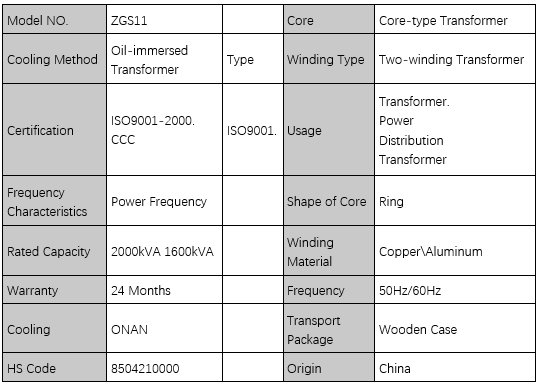

Parameters

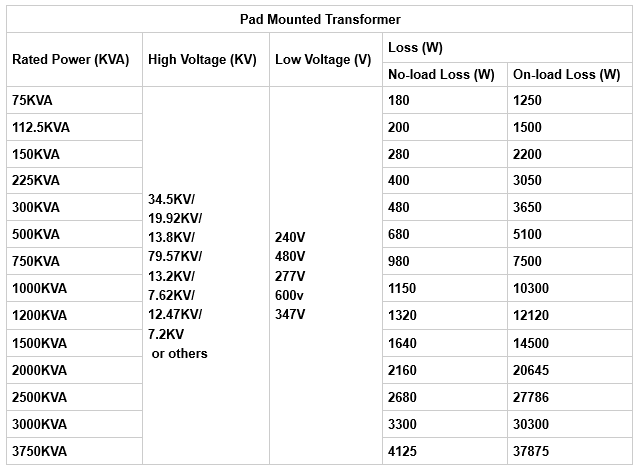

Specification

Know your supplier
ROCKWILL
Rockwill Electric Group Global Manufacturer of High voltage and medium-voltage power equipment and smart grid solutions. Headquartered in Wenzhou, China. Serving 100+ countries with quality, innovation, and trust. What We Offer: • HV-MV switchgear (VCB, SF₆ circuit breakers, RMU, GIS) • Distribution transformers and substations • Smart grid and monitoring systems • Solar, wind, EV charging, and energy storage solutions • EPC turnkey power projects Certified: ISO 9001 / ISO 14001 / ISO 45001
Main Categories
High voltage
Business Type
Design/Manufacture/Sales
Highest Annual Export (USD)
$150,000,000
Professional Experience
16 years
Workplace
108000m²m²
