15kVA Single Phase Pad Mounted Transformer

discuss personally

Model

Basic info Product Detail Supplier

Basic info

Brand	ROCKWILL
Model NO.	15kVA Single Phase Pad Mounted Transformer
Rated frequency	50/60Hz
Rated capacity	15kVA
Series	ZGS

Product Detail

Descripton

The pad-mounted transformers provide reliable underground power distribution for medium and low voltage applications. With ratings from 15-500kVA and voltage options up to 34.5kV, these compact units feature universal bushing wells, multiple fuse protection options, and ANSI-standard tap arrangements. Engineered to exceed ANSI, NEMA and RUS standards, they incorporate durable shell-form core designs and robust enclosures for long service life.

Key Features

Enhanced Safety:Tamper-proof enclosure with stainless steel locking, automatic pressure relief, and multiple fuse protection options including current-limiting fuses.
Reliable Performance:Shell-form core design with short-circuit withstand capability, adhesive-coated insulation, and mineral oil cooling system.
Durable Construction:Powder-coated steel enclosure with corrosion-resistant finish, removable access hood, and laser-engraved identification.
Flexible Configuration:Multiple HV/LV bushing arrangements (ANSI Type I/II) with optional SCADA integration for smart grid compatibility.

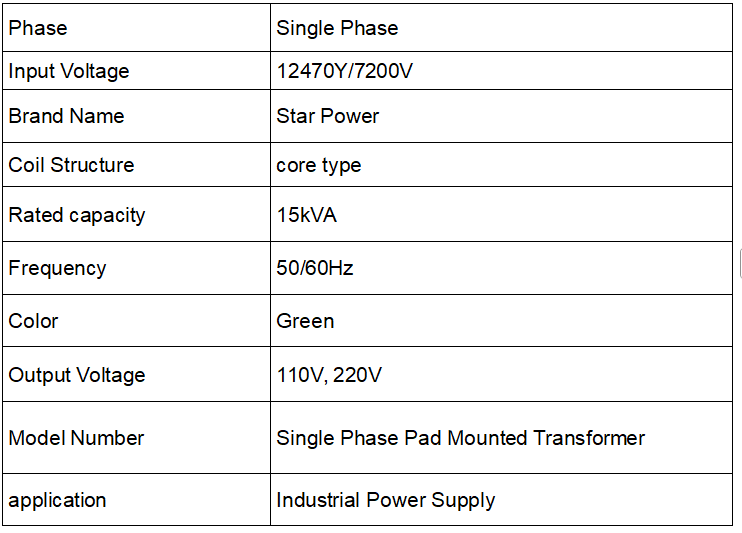

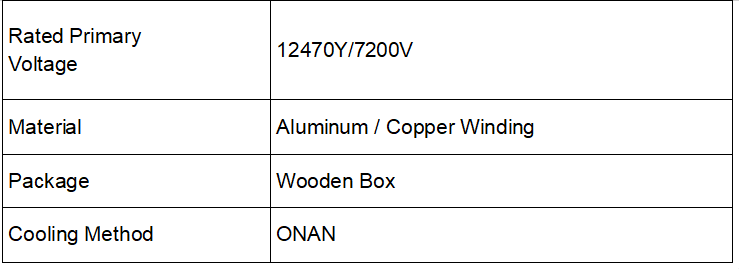

Main Technical Specifications

Applications

Urban power networks for residential and commercial areas
Industrial facilities and renewable energy connections
Municipal infrastructure including street lighting
Data centers and critical power installations
