Description

The RVR-1 is a single-phase, oil-immersed automatic voltage regulator based on an autotransformer design. It is equipped with an advanced RVR controller that continuously samples voltage and current signals from the distribution line. Through an integrated on-load tap changer (OLTC), the RVR-1 dynamically adjusts voltage levels to match load conditions, improving voltage stability and system efficiency.

The system combines a tap-changing transformer, motor-driven switching mechanism, and intelligent control to provide automatic voltage regulation with high precision and reliability.

Key Features

• Wide Regulation Range:Regulates voltage from -10% (buck) to +10% (boost) in 32 fine steps, approximately 0.625% per step.
• Smart Control System:Features a self-developed RVR controller with support for GPRS/GSM and Bluetooth communication, enabling real-time data acquisition and remote control.
• Advanced Protection Functions:Integrated lock-out protection against line faults, overloads, overcurrent, and undervoltage conditions.
• Customizable Settings:Supports adjustable voltage reference values, tap step limits, tap delay time, and user-defined control parameters.

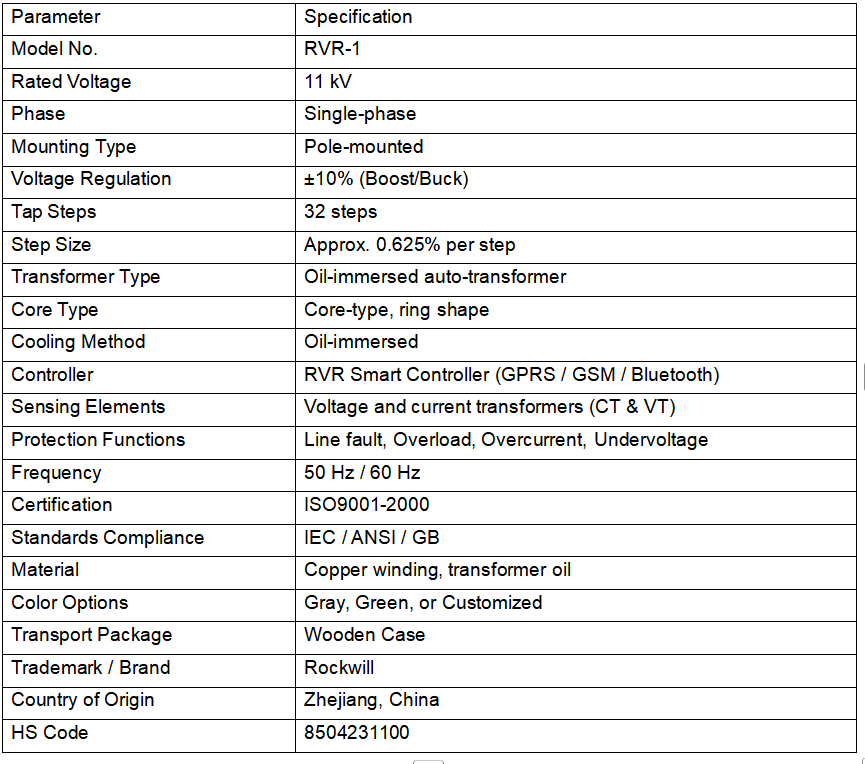

Technical Parameters

Standard Configuration

• Tap changer with motor drive and power supply unit
• RVR-type intelligent control cabinet with removable front panel
• Voltage and current sensing from CTs and VTs
• Position indicator with ADD-AMP adjustment
• High-creepage porcelain bushings for insulation strength
• Oil drain valve with sampling feature
• Pressure relief device for safety protection
• External MOV-type surge arresters
• Oil sight gauge for monitoring oil level
• Durable nameplate and lifting lugs
• Conformally coated circuit boards for enhanced durability

Application Scenarios

• Feeder voltage regulation for rural or long-distance distribution lines
• Industrial areas with variable load profiles
• Distribution networks requiring automatic and precise voltage control
