• 36kV/40.5kV Prefabricated Substation
36kV/40.5kV Prefabricated Substation
discuss personally
Model
YB-40.5
Basic info
Brand ROCKWILL
Model NO. 36kV/40.5kV Prefabricated Substation
Rated voltage 40.5kV
Rated normal current 1250A
Rated frequency 50/60Hz
Series YB
Product Detail

36kV/40.5kV Prefabricated Substation Characteristics:

This type substations are the HV side 40.5 kV, LV side 0.4-12 kV and 3 phase outdoor completeequipment .It is wide used in cities , towns ,factories and oil fields, wharfs etc. It is also used insome construction sites. The characteristics are small volume, convenient installation, low cost,high automation safe and reliable operation. Substation is combined with HV switch room,LVswitch room, relay room and transformer room.

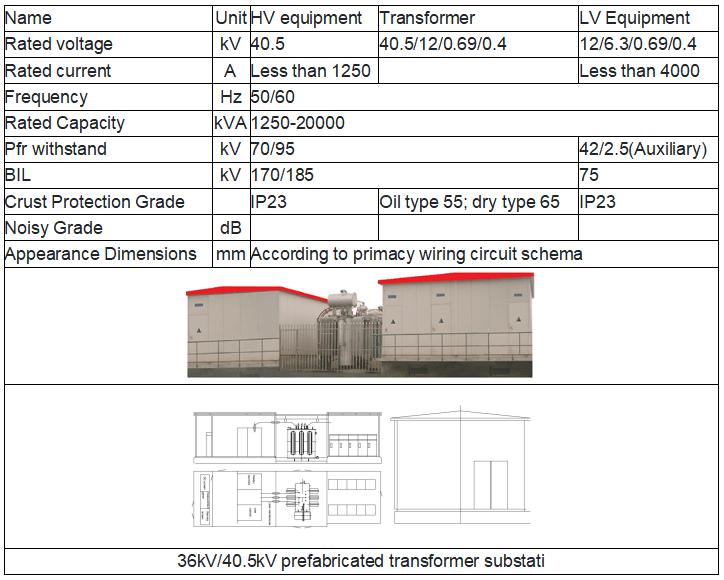

Main technical specifications for 36kV/40.5kV Prefabricated Substation:

Main Primacy Wiring Circuit Schemas for Substation(40.5kV):

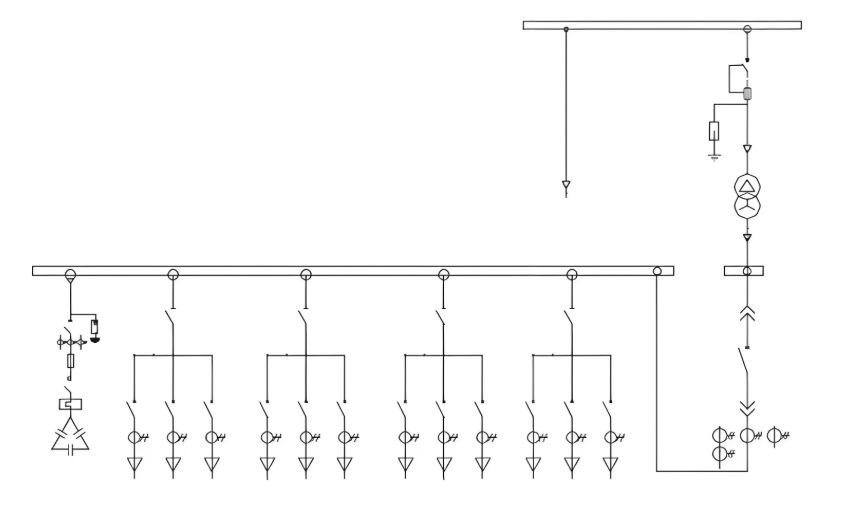

Wiring type A - 40.5kV

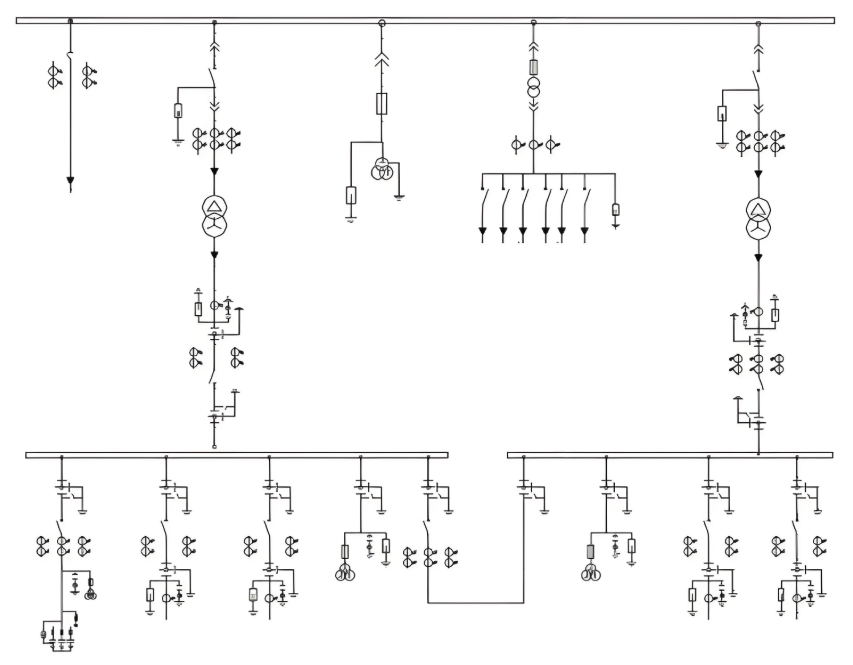

Wiring type B - 40.5kV

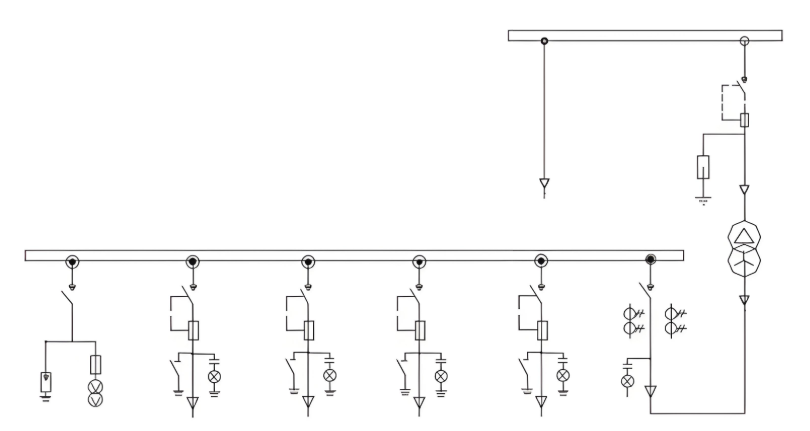

Wiring type C - 40.5kV

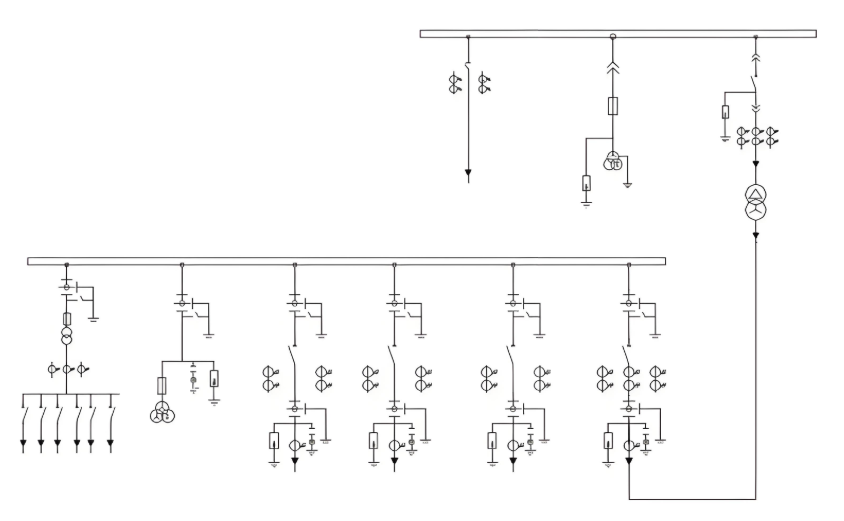

Wiring type D - 40.5kV
