• 126(145)kV HV Vacuum circuit breaker
126(145)kV HV Vacuum circuit breaker
discuss personally
Model
ZW-145
ZW-126
Basic info
Brand ROCKWILL
Model NO. 126(145)kV HV Vacuum circuit breaker
Rated voltage 145kV
Rated frequency 50/60Hz
Series ZW
Product Detail

Product introduction:

The 126(145)kV HV Vacuum circuit breaker is a cutting - edge high - voltage electrical device designed to ensure the safe and efficient operation of power systems. Leveraging vacuum as the arc - extinguishing and insulating medium, it boasts exceptional performance in rapidly interrupting fault currents, preventing arc re - ignition, and maintaining stable insulation. Its robust construction and advanced operating mechanisms guarantee reliable switching capabilities, even under extreme conditions. Ideal for substations and critical transmission lines, this breaker combines high - voltage handling capacity with long - term durability, reducing maintenance needs and enhancing overall grid reliability.

Main characteristic:

  • High - Voltage Rating: Designed for 126(145)kV, suitable for major transmission and distribution systems.
  • Vacuum - based Arc Extinction: Ensures rapid arc quenching and prevents re - ignition for reliable operation.
  • Robust Construction: Built to withstand extreme conditions, providing mechanical stability and durability.
  • Efficient Fault Interruption: Quickly cuts off fault currents to protect power grid equipment.
  • Low Maintenance: Long - lasting performance reduces the frequency of servicing requirements.

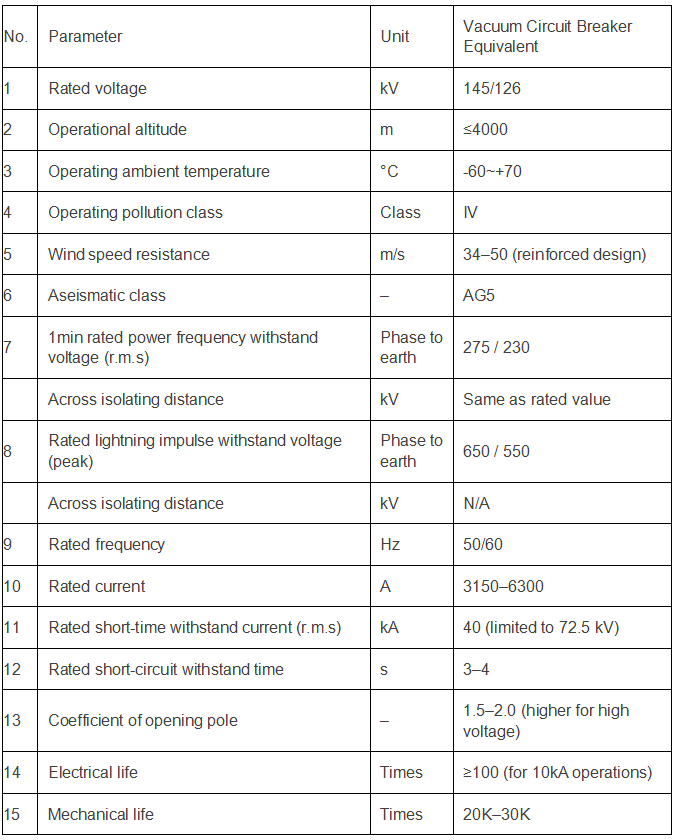

Main technical parameters:

Instructions on placing orders :

  • Model and format of the circuit breaker.

  • Rated electrical parameters (voltage, current, breaking current, etc).

  • Working conditions for using (environment temperature, altitude, and environment pollution level).

  • Rated control circuit electrical parameters (Rated voltage of energy-store moter and Rated voltage of opening, closing coil).

  • Names and quantities of spare items needed, parts and special equipment and tools (to be otherwise ordered).

  • The wire connecting direction of the primary upper terminal.
