What is the Neutral Wire?
The neutral wire is a conductor that facilitates the return of current to the electrical source, thus completing the electric circuit. In a standard electrical system, power is delivered via the “HOT” wire (also referred to as the Line, Live, or Phase wire), while the neutral wire serves as the return pathway for the current.

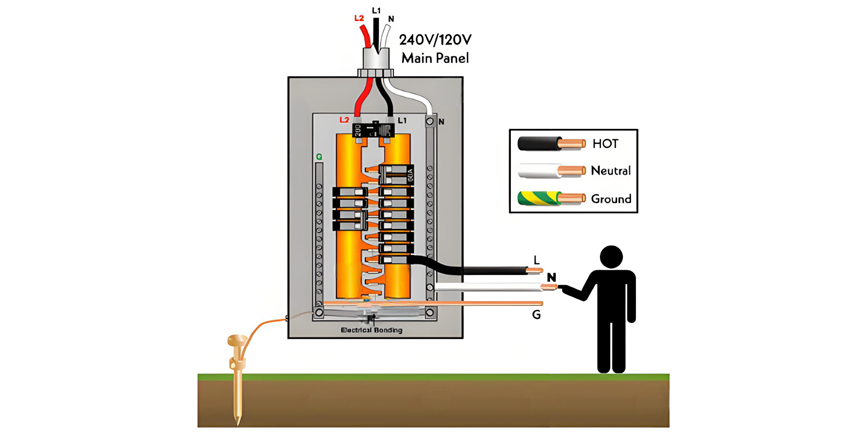

Typically, the neutral wire is connected to the ground at specific points, such as at the transformer side and within the main electrical panel where it is bonded to the ground bar. This connection helps to stabilize the circuit voltage and provides a safe current - flow path in the event of a fault. Since it has the same electrical potential as the earth, which is 0 volts, it is called the neutral wire.
Will You Get an Electric Shock If You Touch the Neutral Wire?
Under normal conditions, touching the neutral wire in an electrical circuit does not result in an electric shock. This is because the neutral wire is usually connected to the ground at various points, including at the substation and within the main electrical panel. These connections effectively equalize its electrical potential with that of the ground.
Neutral Wire Function and Shock Risk in Circuits
In a well - functioning electrical circuit, the neutral wire plays a crucial role by carrying electric current back to the power source, thus completing the circuit. As it is at the same electrical potential as the ground, under normal circumstances, touching the neutral wire should not lead to an electric shock. However, if there is a circuit or wiring fault, such as a break in the neutral wire or a short circuit, the neutral wire can become energized, presenting a significant shock hazard.
This highlights the importance of proper grounding and correct wiring. When dealing with electricity, it is always necessary to exercise extreme caution. If you have any concerns regarding the wiring in your home or workplace, it is advisable to consult a qualified electrician.
Are Neutral Wires Harmless?
Under normal operating conditions, neutral wires are generally regarded as harmless. They are responsible for returning current to the power source and typically have a voltage close to that of the ground. Consequently, in normal situations, touching a neutral wire should not result in an electric shock. Nevertheless, if there is a fault in the electrical wiring or system, the neutral wire can become live and pose a risk of electric shock. Therefore, it is essential to handle electrical wiring with care and ensure that all wiring is correctly installed and regularly maintained to prevent accidents.

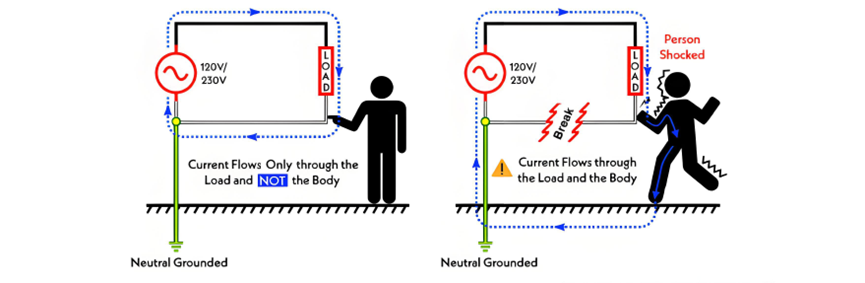

When Does the Neutral Wire Pose an Electric Shock Risk?
Neutral wires are not always safe. They can pose an electric shock risk when there is a fault within the electrical system. For instance, if the neutral wire becomes disconnected or breaks, it loses its connection to the ground reference. In such situations, the neutral wire can become “hot” and carry the full circuit voltage, making it dangerous to touch.Moreover, improper connections of the neutral wire or other wiring faults can cause the neutral wire to carry abnormal current, which also presents a risk of electric shock upon contact. To prevent these hazards, it is vital to ensure that electrical systems are installed correctly and maintained regularly.
In summary, touching neutral wires can be perilous in the following situations:
- When there is an inadequate earthing/grounding system.
- When the neutral wire is broken while the load remains connected to the phase wire and the circuit lacks protection from Ground - Fault Circuit Interrupters (GFCIs) or Residual - Current Devices (RCDs).
- When the phase and neutral wires are reversed due to incorrect wiring configuration.
- When a short circuit occurs, causing the neutral wire to become live (hot).
Safety Precautions
- Before undertaking any electrical repairs or maintenance, always disconnect the main breaker in the main electrical panel.
- Electricity can exhibit erratic behavior, rendering it both hazardous and unpredictable. Never take it for granted or leave room for risk.
- Under no circumstances should you touch the bare conductor or exposed part of any wire.
- Always utilize a multimeter or phase tester to verify the voltage and current values of various wires.
- When working with live wires, wear gloves and rubber - soled shoes.
