SmartGrid-Ready 12kV Indoor Vacuum Circuit Breaker Solutions for Central & South Asia
Ⅰ. Central Asia Market Characteristics
1. Significant Power System Disparities with Prominent Aging Equipment
- Kazakhstan & Uzbekistan: Grid equipment exceeds operational lifespan (70%-80% aging in Kazakhstan; ~1/3 of low-voltage grids in Uzbekistan overdue), leading to high transmission losses (notably in Kazakhstan’s 12kV distribution networks).
- Tajikistan: Fragile transmission networks suffer 20% energy loss. Turkmenistan faces inefficient grids and severe equipment degradation.
2. Accelerated Renewable Transition with Weak Foundations
- Kazakhstan & Uzbekistan target 30% and 25% renewable energy by 2030, respectively, focusing on solar, wind, and hydropower (Uzbekistan plans nearly 10GW renewable capacity).
- Tajikistan: Hydropower dominates (94%) but lacks robust Measurement, Reporting, and Verification (MRV) systems, causing grid instability. Turkmenistan relies on fossil fuels (98% oil/gas) despite abundant solar resources.
3. Technical Demands Focus on Reliability & Environmental Adaptation
- Kazakhstan/Uzbekistan: Require compliance with international standards.
- Tajikistan: Needs 12kV circuit breakers with enhanced short-circuit interruption and environmental resilience.
- Turkmenistan: Prioritizes high-reliability equipment for grid upgrades.
Ⅱ. South Asia Market Characteristics
1. Large Power Gaps and Urgent Upgrade Needs
- India: 8%-12% power deficit, 23.4% transmission losses; plans $150B grid upgrades in 5 years.
- Pakistan: Summer shortages reach 8,000MW; daily outages last 6–8 hours.
- Bangladesh: Rural electrification rate only 50%. Sri Lanka depends on imported power with outdated infrastructure.
2. Renewables as Development Priority
- India/Bangladesh/Sri Lanka target 40%, 30%, and 70% renewable energy by 2030.
- Pakistan: Imported 16GW PV modules in FY2024, emphasizing distributed solar.
3. Divergent Environmental & Technical Requirements
- Pakistan: Coastal regions demand corrosion-resistant 12kV breakers (salt spray).
- Bangladesh/Sri Lanka: Require high-reliability equipment to minimize outages.
- India: Aging 12kV networks necessitate upgrades for stability.
Ⅲ. Technical Solutions & Environmental Adaptation

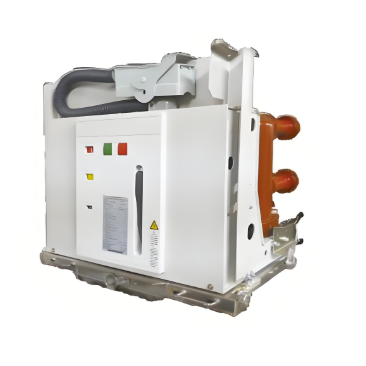

Design for 12kV Indoor Vacuum Circuit Breakers (IVCBs)
Electrical Parameters
|
Parameter |
Baseline |
Central Asia Adaptation |
South Asia Adaptation |
|
Rated Voltage |
12kV |
High-altitude compatibility |
High-temperature resilience |
|
Power Frequency Withstand |
42kV (pole)/48kV (gap) |
KazGOST certification |
ISI (India) certification |
|
Short-Circuit Breaking |
31.5kA |
≥50 operations (wind farms) |
≥50 operations (PV grid-tie) |
|
Mechanical Life |
≥10,000 ops |
Frequent-operation scenarios |
Frequent-operation scenarios |
|
Breaking Time |
≤60ms |
Voltage-fluctuation resilience |
Voltage-fluctuation resilience |
Environmental Adaptation
- Central Asia:
- Kazakhstan: Operates at -30°C to +60°C; copper-chromium alloy contacts + low-temp lubricants.
- Uzbekistan: Optimized arc-extinguishing chambers (80kA breaking capacity for wind farms).
- Tajikistan: ±10% voltage tolerance + anti-vibration design for hydropower plants.
- Turkmenistan: Enhanced heat dissipation to reduce grid losses.
- South Asia:
- India: IP65 protection + +60°C tolerance for synchronized grid operation.
- Pakistan: S316 stainless steel casing (1,000-hr salt spray test) + humidity-proofing.
- Bangladesh: Sealed design + anti-corrosion coating for tropical coasts.
- Sri Lanka: High-reliability structure + energy-storage interface for renewables.
Smart Features
- Remote Control: Grid automation interface, cloud-based health analytics, mobile alerts.
- Adaptive Protection: Optimized arc-extinguishing for renewables, overvoltage protection, multi-layer safety mechanisms.
Ⅳ. Implementation Support System
1. Localized Service Network
- Parts warehouses in Kazakhstan (Central Asia) and India (South Asia); 72-hour emergency response.
2. Technical Training
Collaborate with local agents/partners and power grid companies to conduct operational training, with a focus on covering:
- Vacuum degree detection (to avoid insulation failure caused by<10 ⁻ 2 Pa)
- Mechanical characteristic debugging (opening and closing time, bounce time ≤ 2ms).
- Equipment installation, debugging, and maintenance
3.Sustainable Supply Chain
- Local assembly (e.g., India’s Havells) to cut tariffs by >30%.
Ⅴ. Market Outlook & Policy Support
- Demand Drivers:
- South Asia’s smart-grid upgrades (India’s Smart Cities), Central Asia’s mining electrification (Kazakhstan), driving 8.6% annual IVCB growth.
- Policy Incentives:
- China’s Belt and Road projects prioritize domestic equipment (e.g., Shaanxi Pinggao’s VPG series).
