Single Phase Prepayment Smart Energy Meters with Wifi Communication
$60.00
Model
| Brand | Wone |
| Model NO. | Single Phase Prepayment Smart Energy Meters with Wifi Communication |
| Rated voltage | 230V |
| Rated normal current | 5(30)A |
| Rated frequency | 50（Hz） |
| Methods of Communication | Bluetooth |
| Series | D124056 |
Description
This is a single phase two wire WiFi prepayment keypad meter, the prepayment energy meter supports WiFi communication, built-in magnetic relay, can realize the functions of pay-as-you-go, remote meter reading, remote recharge, remote balance clearing/total power, overpower tripping, automatic tripping when the balance is exhausted, etc
Features
bypass power detection, record events and LED alarm.
open terminal cover detection, LED alarm and record the event.
record external magnetic field event.
record over voltage and low voltage event.
self-diagnostic: EEPROM check, battery alarm.
Total active energy power, voltage effective value, current effective value, average active energy on second, current date。
With G3 PLC communication.
Over voltage, low voltage, bypass, current reverse, power off, open terminal cover.
Single phase active energy measurement, keep records of power, average active energy on second, voltage effective value, current effective value, demand.
Specifications
| Main |
|
|---|---|
| Range | D124056 |
| Product or Componet Type | Energy meter |
| Country of origin | China |
| Complementary |
|
|---|---|
| Phase | Single Phase |
| Type of measurement | ---- |
| Metering type | Measurement |
| Device Application | Energy Charge |
| Accuracy class | Active power 1.0 |
| Rated Current | 5(60)A |
| Rated Voltage | 230V |
| Network Frequency | 50-60Hz |
| Technology Type | Electronic |
| Display Type | LCD display(LCD 6+2 = 999999.99kWh) |
| Impulse Constant | 1000imp/kWh(LED) 1000imp/kvarh |
| Maximum value measured | 99999.99kWh |
| Tariff input | --- |
| Communication port protocol | Wifi |
| Communication port support | Bluetooth |
| Local signalling | ------ |
| Number of inputs | ------- |
| Number of Outputs | -------------- |
| Output voltage | 230V |
| Mounting Mode | Clip-on |
| Mounting Support | DIN rail |
| Connections - terminals | ------- |
| Standards | DLMSMID/CE |
| Environment |
|
|---|---|
| IP degree of protection | IP54 |
| Relative humidity | ≤75% |
| Ambient air temperature for operation | -20…55 °C |
| Ambient Air Temperature for Storage | --20…70 °C |
| Operating altitude | --- |
| Dimensions | 171.5*124.9*54.5mm |
| Packing Units |
|
|---|---|
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 54.5mm |
| Package 1 Width | 124.9mm |
| Package 1 Length | 171.5mm |
| Package 1 Weight | 1.000kg |

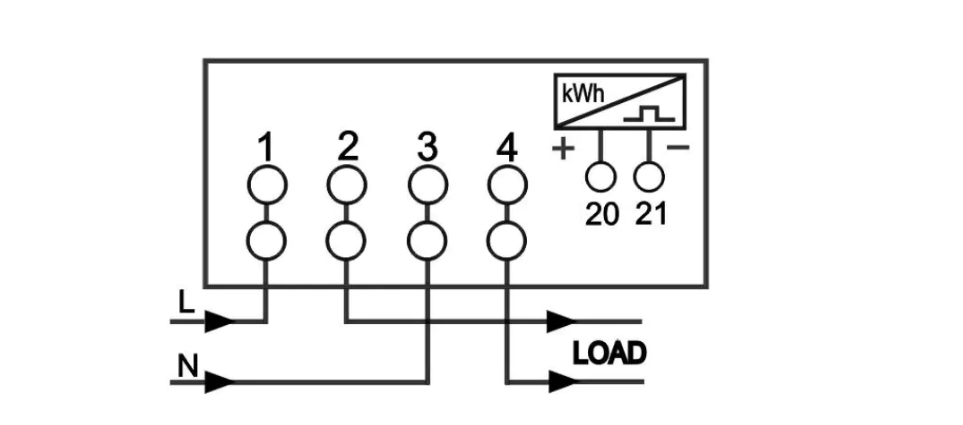

Connection Diagram

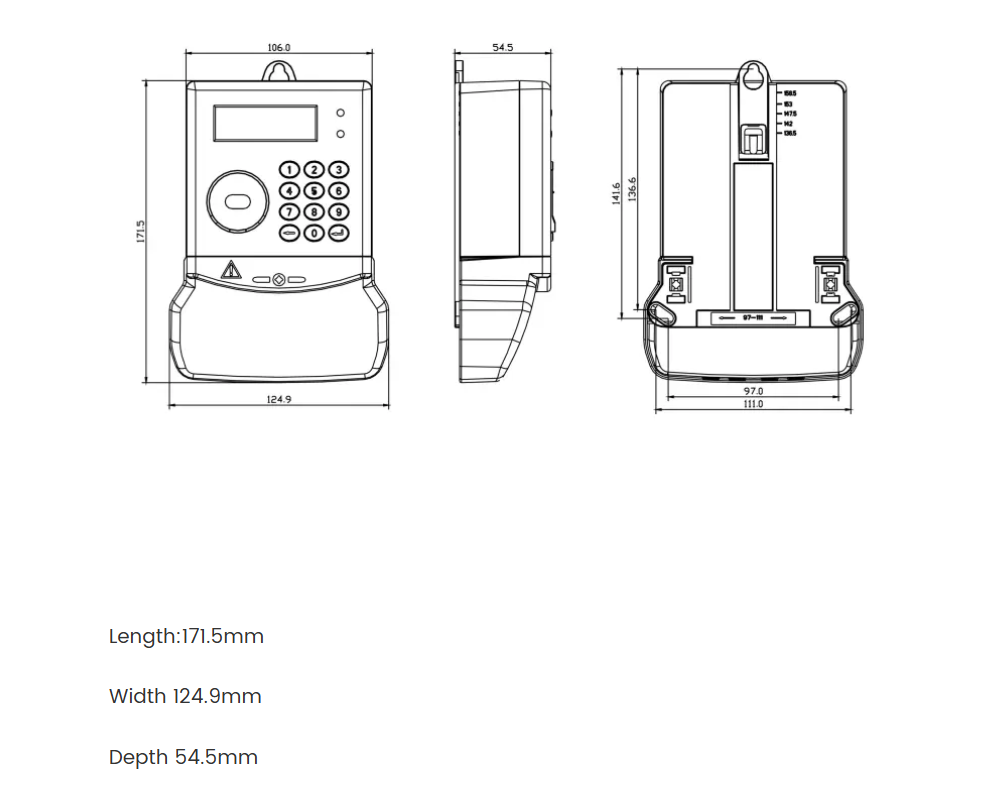

Dimensions
