Single Phase Din Rail Electric Prepayment Meter with GPRS Communication

Product Detail

Description

It is a single-phase two wire three modular DIN RAIL prepayment smart meter, with built-in motor relay and 4G module, automatic networking, can realize remote reading, remote recharge, remote balance clearing, when there is overload or no credit will cut off the power automatically. At the same time, it has Bluetooth communication, which can connect with in-home-display and mobile phone for data reading and setting.

Features

Recharging Token for the latest 10 times ( 20-bit code generated when recharging Token).
The latest 10 events of over/under voltage, low frequency, overload, temperature, low credit.
Support 4G communication, automatic networking when power on, without manual setting.
The meter can store up to 31 days of 24-hour power and monthly and annual hourly cumulative data.
When the load exceeds the set power threshold for more than 3 seconds, the relay will be disconnected, and the overload threshold can be set by software.
Meter support terminal cover detection. When the terminal cover is opened, the indicator symbol of electricity tampering flashes.
Meter has the function of detecting the imbalance of two circuits. The indicator symbol of electricity tampering flashes when the current is unbalanced between live wire and neutral wire.
The meter supports Bluetooth, RS485 local upgrade and 4G remote upgrade, which can update the firmware in time.

Specifications

Main
Range	D114070
Product or Componet Type	Energy meter
Country of origin	China

Complementary
Phase	Single Phase
Type of measurement	----
Metering type	Measurement
Device Application	Energy Charge
Accuracy class	Active power 1.0
Rated Current	5(100)A
Rated Voltage	230V
Network Frequency	50-60Hz
Technology Type	Electronic
Display Type	LCD display(LCD 6+2 = 999999.99kWh)
Impulse Constant	1000imp/kWh(LED) 1000imp/kvarh
Maximum value measured	99999.99kWh
Tariff input	---
Communication port protocol	IDIS
Communication port support	4G/Bluetooth/RS485（baud rate 115200）
Local signalling	------
Number of inputs	-------
Number of Outputs	--------------
Output voltage	----
Mounting Mode	Clip-on
Mounting Support	DIN rail
Connections - terminals	-------
Standards	DLMS/GPRS

Environment
IP degree of protection	IP54
Relative humidity	≤75%
Ambient air temperature for operation	-20…75 °C
Ambient Air Temperature for Storage	--20…80 °C
Operating altitude	---
Dimensions	94.2mm54mm72mm

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	74mm
Package 1 Width	56mm
Package 1 Length	96.2mm
Package 1 Weight	1.000kg

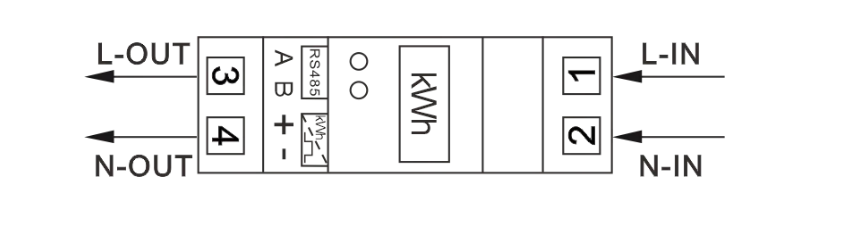

Connection Diagram

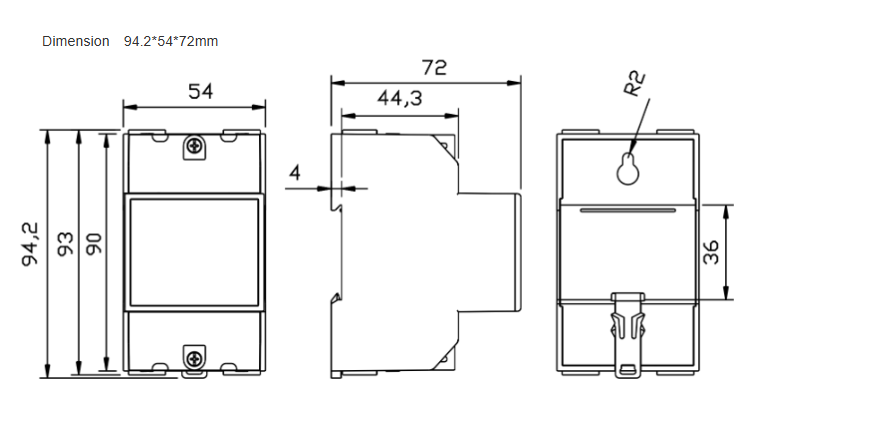

Dimensions

Brand	Wone
Model NO.	Single Phase Din Rail Electric Prepayment Meter with GPRS Communication
Rated voltage	230V
Rated normal current	5(30)A
Rated frequency	50（Hz）
Methods of Communication	4G
Series	D114070
