ODM factory GPRS Watt hour meter with 4G or 3G communication
$90.00
Model
| Brand | Wone |
| Model NO. | ODM factory GPRS Watt hour meter with 4G or 3G communication |
| Rated voltage | 230V |
| Rated normal current | 5(30)A |
| Rated frequency | 50（Hz） |
| Methods of Communication | Bluetooth |
| Series | D124066 |
Description
Meter support 4G communication, with fall back capability to 2G and 3G. The meter has three operating modes: STS token mode, currency prepaid mode and postpaid mode, which can be switched through communication.
Features
Support load ground connection, bypass detection, open cover detection, influence of external magnetic field, abnormal voltage record, live&neutral wire metering.
Anti-tamper when Neutral missing: when Neutral missing, the meter still can work（battery support).
Divide into weekday timetable and weekend timetable, with 8 time period and 8 tariffs. Every timetable has a backup table for remote updating of backup timetable and configure the switching time. Meter will automatically switch the tariff table at the switching time.
Meter support 4G communication, with fall back capability to 2G and 3G.
Open cover, magnetic field, load ground connection, reserve current, over-voltage, low-voltage, low-frequency, overload, power-fail, low remaining power, and token record.
Meter measures voltage, current, active power, reactive power, frequency, power factor, MD in the current month, MD of last 1 month, MD of last 2 month, total output energy of the current month, total output energy of last 5 month, and total reactive energy.
Meter has 3 operation modes: STS token mode, currency prepaid mode and post-paid (traditional) mode, which can be switched.
And the currency mode can be divided into tariff mode and step price mode. Modes can be configured through communication.
Enter 20-digit token via keypad of meter or IHD, the meter display will be green Pic 1 if recharging is successful, will be red Pic 2 if is failed.
Specifications
| Main |
|
|---|---|
| Range | D124066 |
| Product or Componet Type | Energy meter |
| Country of origin | China |
| Complementary |
|
|---|---|
| Phase | Single Phase |
| Type of measurement | ---- |
| Metering type | Measurement |
| Device Application | Energy Charge |
| Accuracy class | Active power 1.0 |
| Rated Current | 5(100) A |
| Rated Voltage | 230V |
| Network Frequency | 50 |
| Technology Type | Electronic |
| Display Type | LCD display(LCD 6+2 = 999999.99kWh) |
| Impulse Constant | 1000imp/kWh(LED) 1000imp/kvarh |
| Maximum value measured | 99999.99kWh |
| Tariff input | 8 tariffs |
| Communication port protocol | DLMS/COSEM(IEC62056) |
| Communication port support | Bluetooth |
| Local signalling | ------ |
| Number of inputs | ------- |
| Number of Outputs | -------------- |
| Output voltage | 230V |
| Mounting Mode | Clip-on |
| Mounting Support | ---- |
| Connections - terminals | ------- |
| Standards | IEC62052-11:2003, IEC62053-21:2003, IEC 62056-21,IEC62055-41:2018 |
| Environment |
|
|---|---|
| IP degree of protection | IP54 |
| Relative humidity | <95% |
| Ambient air temperature for operation | -20…70 °C |
| Ambient Air Temperature for Storage | --30…80 °C |
| Operating altitude | --- |
| Dimensions | 176.8*117*58mm |
| Packing Units |
|
|---|---|
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 178mm |
| Package 1 Width | 119mm |
| Package 1 Length | 60mm |
| Package 1 Weight | 1.000kg |

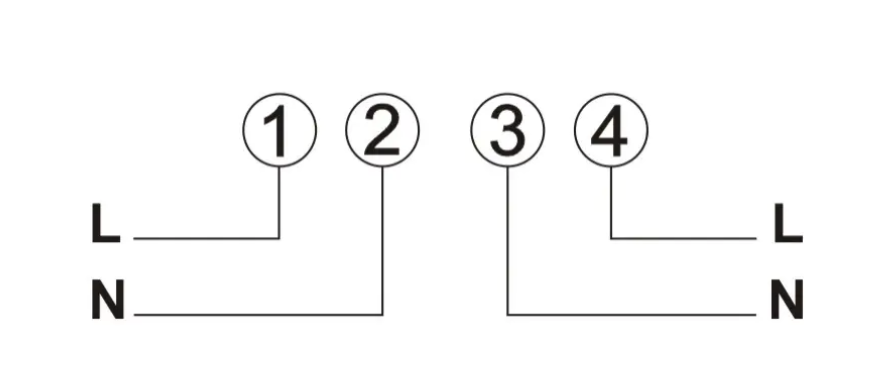

Connection Diagram

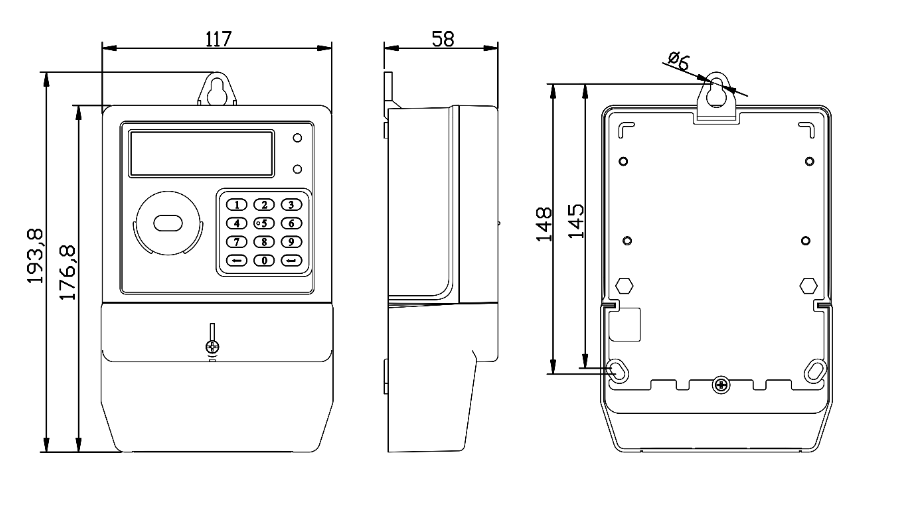

Dimensions
