27kV indoor Drawout vacuum circuit breaker

discuss personally

Model

Basic info Product Detail Supplier

Basic info

Brand	Schneider
Model NO.	27kV indoor Drawout vacuum circuit breaker
Rated voltage	27kV
Rated normal current	2000A
Rated frequency	50/60Hz
Series	VR

Product Detail

Description：

The circuit breaker contacts are located where indicators are readily accessible.The front accessible mechanism allows for ease of maintenance. The circuitbreaker operates at a high speed and, because of the hermetically sealed vacuum interrupters, has a longer life cycle.With their wide range of ratings and benefits, the Type VR circuit breakers are offered not only in medium voltage switchgear, but also in semi-assembled switchgear and OEM components.

Features：

VR breakers feature a fast 3 cycle interrupting rating for demanding medium voltage applications.

Removable, drawout vacuum circuit breakers with 3 cycle interruption
Voltage range: 4.76kV to 27kV
Current range: 1200A to 4000A
Interrupting range: 25kA to 63kA
Permanently mounted spring charge handle
UL label
Contact erosion indication on each pole
Dedicated bottom wheels for moving on floor
Dual trip/undervoltage trip options
5NO/5NC contacts for breaker status
Mechanism and truck operated contacts for SCADA/control
Operation counter is standard

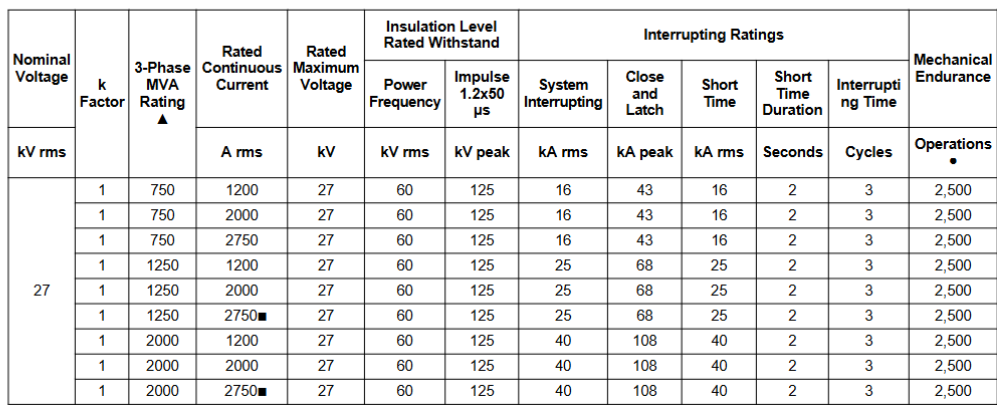

Technical Characteristics:
