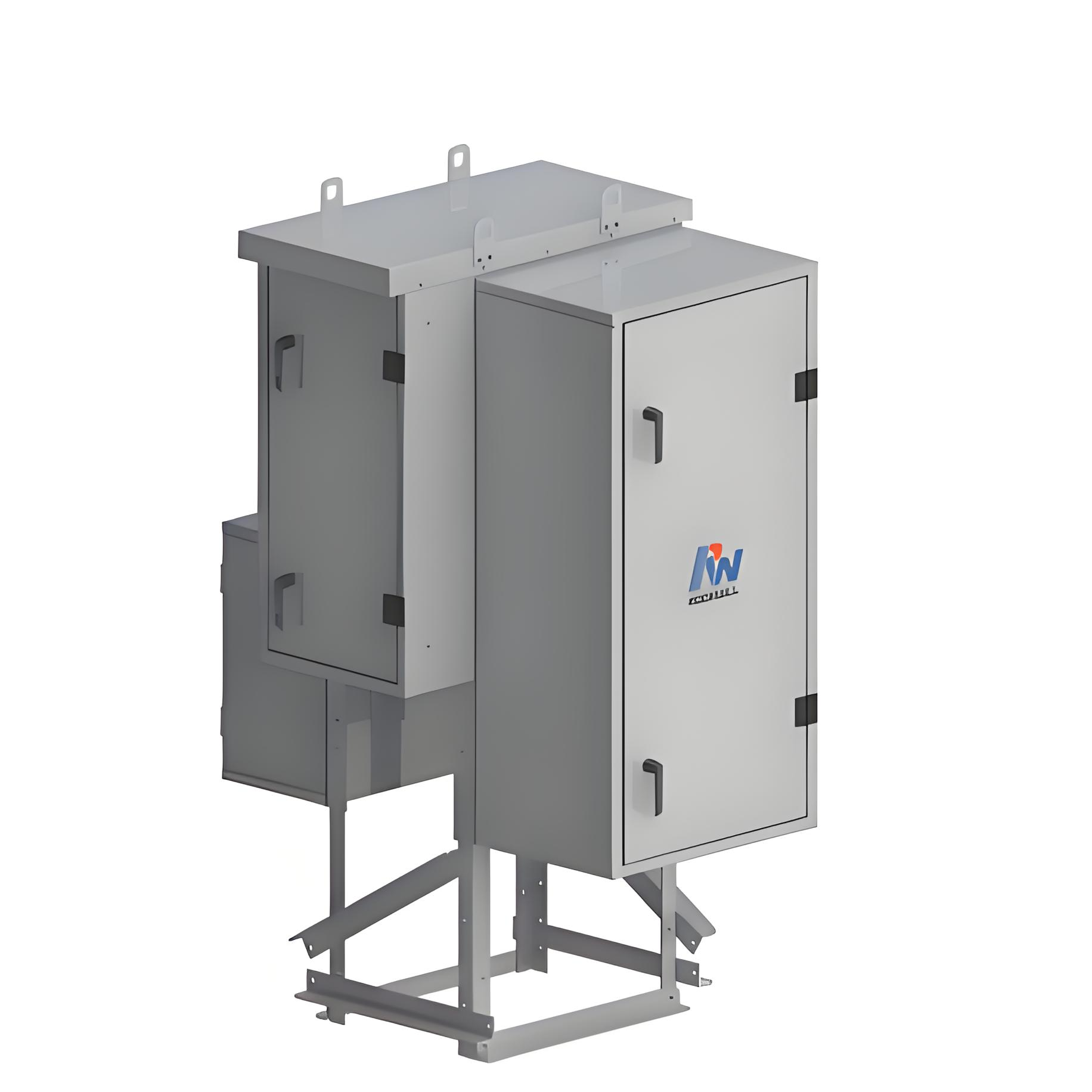

Description ：

OMR is a ring main unit for the secondary distribution network. RMU(OMR) can be supplied as a 3 or 4-way  standard configurations with additional equipment according to customer specification. OMR can be supplied in 10  different configurations (Such as CVC, CCV, CVV, CFF, CCC, VVV, CCVV etc) suitable for most switching  applications in 12/24 kV distribution networks.

It is extendable and combined with our own developed technology concept, which is flexible, modular compact  switchgear, they represent a complete solution for 12/24 kV secondary distribution networks. OMR have identical user interfaces.

OMR is a completely sealed system with a stainless steel tank containing all live parts and switching functions.  A sealed steel tank with constant atmospheric conditions ensures a high level of reliability as well as personnel  safety and a virtually maintenance-free system.

The OMR concept offers a choice of either switch-fuse combination or circuit-breaker with relay for protection of  the transformer. OMR can be supplied with an integrated remote control and monitoring unit. This product is in conformity with the standards: IEC62271-200, IEC60420

Technical feature :

  • Good insulation performance, compact structural design；

  • High protection level, fully sealed and fully insulated structure；

  • Fast operation performance, high degree of intelligence；

  • Good environmental protection performance, and convenient installation.

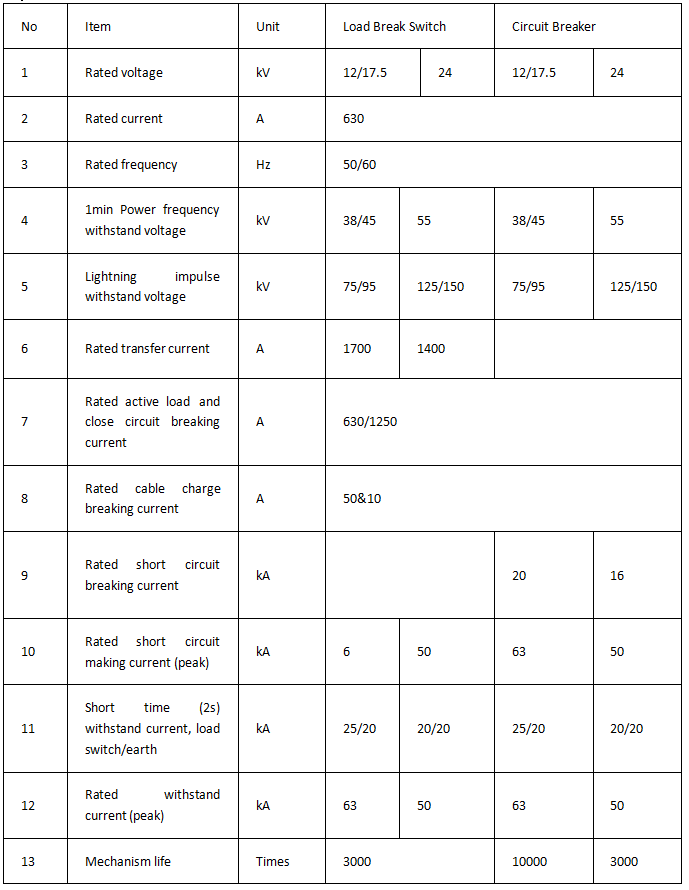

Main technical parameters:


Single Line Diagram:

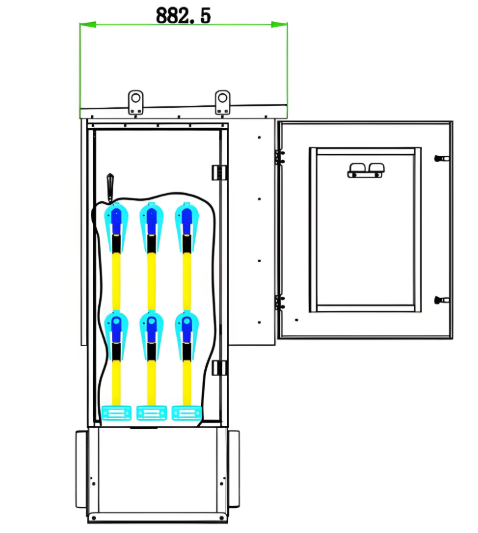

Structure Diagram：
