Grid Integration of Commercial & Industrial Energy Storage Systems (C&I ESS)

Echo

06/20/2025

As the automotive industry evolves, new energy sources like solar, wind, and tidal power are increasingly integrated into vehicle charging stations. Balancing power supply - demand mismatches across different time periods and overcoming site - related constraints for large - scale energy storage charging stations have made commercial and industrial (C&I) energy storage systems a focal point in power grid applications.

This paper delves into their diverse use cases in power grids, covering technical features, operational principles, etc. It also examines technical and economic challenges faced by C&I energy storage deployments and forecasts future development trends.

1. Background

Amid global energy transition and worsening ecological pressures, power systems confront mounting challenges: intermittency/volatility of new energy, continuous growth in electricity demand, and rising power quality requirements. Electric vehicle charging stations and C&I energy storage facilities are often located near urban areas, facing strict site - size limitations. C&I energy storage offers a flexible, efficient solution to power supply stability issues while bypassing large - scale storage construction barriers due to space constraints, paving a new path for grid reliability and accessibility.

2 Overview of Commercial and Industrial Energy Storage Systems
2.1 Working Principle

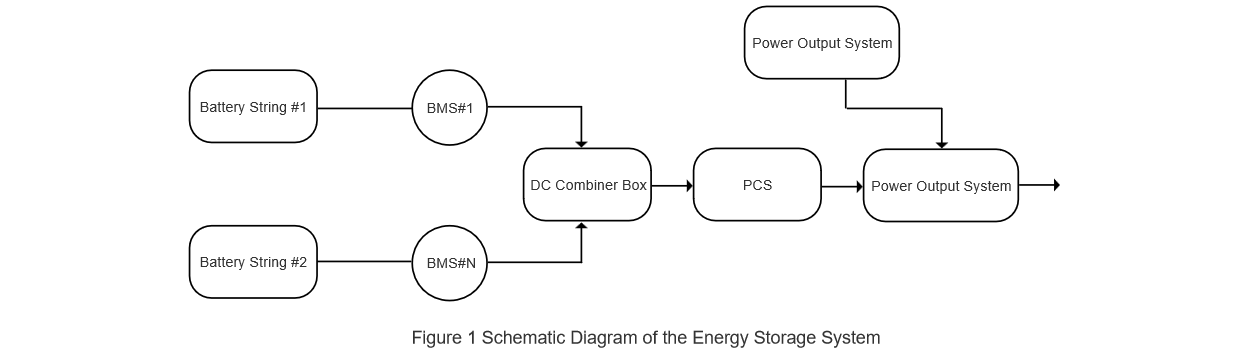

A commercial and industrial energy storage system stores electrical energy in specific media, such as batteries and supercapacitors, via a Power Conversion System (PCS). When needed, it releases the stored energy, enabling electrical energy scheduling and power regulation. Typically, the energy storage system consists of batteries, a Battery Management System (BMS), an Energy Management System (EMS), a DC combiner module, a PCS, and an output system. The schematic diagram of the energy storage system is shown in Figure 1.

2.2 Types and Features

(1) All - in - one cabinet mode. It resembles a distribution cabinet in appearance, occupying relatively little space, so it is suitable for installation in limited - space scenarios. With a high degree of modularization, it is convenient for transportation, expansion, and maintenance.

(2) Split - cabinet Mode

Given the cabinet size constraint, its capacity is relatively small (typically 200 kWh), suiting low - capacity scenarios. Multiple cabinets can be assembled for larger energy storage needs.

The split - cabinet mode combines a battery cabinet and a system control cabinet (usually ≤2 battery cabinets, e.g., 1 + 1/1 + 2 configurations). Though space - consuming (vs. all - in - one), it fits scenarios with looser space limits.

Core functions are modularized: the battery cabinet specializes in energy storage/management, with independent cooling (air/liquid), fire - fighting, and explosion - proof designs. The control cabinet handles system coordination, battery convergence, and power conversion.

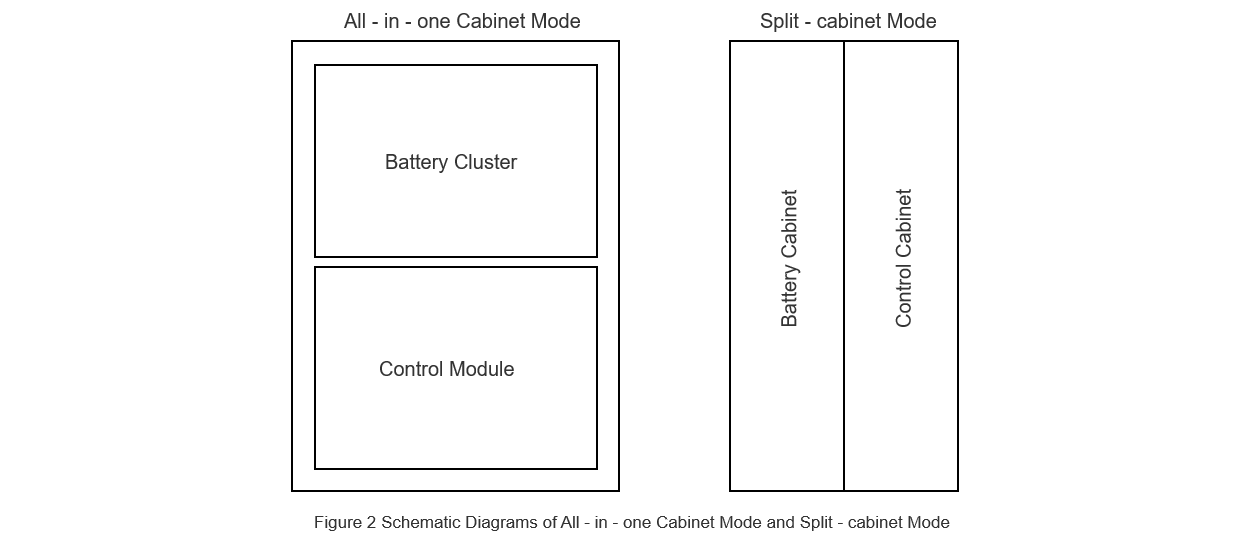

This enhances reliability and maintainability — faults in one module don’t disrupt others, and battery cabinet quantities flexibly adapt to diverse demands.Both modes are illustrated in Figure 2.

3 Application of Commercial and Industrial Energy Storage Systems
3.1 Power Peak Shaving

Commercial and industrial users exhibit peak - valley differences in electricity load. By charging during off - peak periods and discharging at peak times, energy storage systems help balance loads, reduce electricity costs, and alleviate grid supply pressure during peak hours, thereby enhancing grid operation efficiency.

3.2 Power Quality Improvement

Energy storage systems can rapidly respond to power quality issues in the grid. They enhance power quality by supplying or absorbing reactive power, stabilizing voltage fluctuations, and mitigating harmonics.

3.3 Standby Power Supply

When grid failures or outages occur, energy storage systems act as standby power sources, providing short - term electricity for commercial and industrial users. This minimizes losses and improves power supply reliability.

3.4 Renewable Energy Integration

For commercial and industrial users with distributed renewable energy (e.g., solar, wind, tidal power), energy storage systems store surplus renewable generation. They discharge stored power during periods of low renewable output (e.g., no sunlight or weak wind), boosting renewable energy utilization in the grid and accelerating the energy transition. A successful example is the integrated solar - storage - charging station, which optimizes photovoltaic power characteristics.

4 Challenges in Application
4.1 Technical Challenges

(1) Regarding battery service life, performance, and charge - discharge efficiency: While some current products achieve zero capacity fade over 5 years and PCS conversion efficiency exceeding 95%, technical breakthroughs remain difficult. Optimizing battery management strategies and improving conversion efficiency have become key to product competition.

(2) Regarding battery stability and system safety: Compared with large - scale energy storage, commercial and industrial energy storage is closer to residential areas. Thus, battery thermal management systems, explosion - proof systems, and fire - fighting systems are critical to ensuring battery stability and system safety.

4.2 Economic Challenges

(1) High initial investment costs and long payback periods.

(2) Currently, commercial and industrial energy storage revenues mainly come from peak - valley price arbitrage, and the sustainability and stability of revenues need improvement.

5 Conclusion

Commercial and industrial energy storage systems have broad prospects and significant application value in power grids, playing diverse roles. They not only help enhance grid stability and reliability but also bring economic benefits to users, promoting efficient energy utilization and sustainable development. However, numerous technical and economic challenges still exist. Further efforts are needed to strengthen technological innovation, improve market mechanisms and policies, and drive the widespread application and healthy development of commercial and industrial energy storage systems.
