Single Phase Active Electronic Reactive Fcatory Electricity Meter
$90.00
Model
SRMA-230/5(60)-3
SRMA-230/5(100)-3
SRMA-230/5(80)-3
SRMA-230/5(50)-3
SRMA-230/5(40)-3
SRMA-230/5(30)-3
SRMA-230/5(30)-2
SRMA-230/5(40)-2
SRMA-230/5(50)-2
SRMA-230/5(80)-2
SRMA-230/5(100)-2
SRMA-230/5(60)-2
SRMA-230/5(60)-1
SRMA-230/5(100)-1
SRMA-230/5(80)-1
SRMA-230/5(50)-1
SRMA-230/5(45)-1
SRMA-230/5(40)-1
SRMA-230/5(32)-1
SRMA-230/5(30)-1
Basic info Product Detail Supplier
Basic info
Brand Wone
Model NO. Single Phase Active Electronic Reactive Fcatory Electricity Meter
Rated voltage 230V
Rated normal current 5(60)A
Rated frequency 50（Hz）
Methods of Communication ZIGBEE
Series D123031
Product Detail

Description

The meter cover and terminal cover are made of transparent PC materials, and the internal structure of the meter and the welding assembly process are all exposed to the user,which has higher requirements on the ability of the meter manufacturer. The meter case is designed with a programming key, which has a lead block. And the removal of the lead seal can press the programming button, which can set the parameters of the meter.

Features

  • Active and reactive energy measurement

  • Mounted mounting installation

  •  Can up to 60A. RS485.

  • IR and ZIGBEE communication.

  • Multi-tariff function.

  • Meter has 3.6V Lithium battery, which is used to support multi-tariff function. And the precision of RTC is better than 0.5s/day.

  • LCD backlight allows the meter to be read in low light conditions.

  • With relay internal,which is used to remote control the meter connect and disconnect.

  • Terminal cover open detection.

  • With events records.

  • Over or Low voltage protection.

  • Electricity larceny prevention.

  •  Reactive energy can be measured.

  •  Degree of Protection: IP51 (indoor meter).

Specifications

Main
Range D123031
Product or Componet Type Energy meter
Country of origin China
Complementary
Phase Single Phase
Type of measurement

----
Metering type

Measurement
Device Application

Energy Charge
Accuracy class Active power 1.0
Rated Current 5(60)A
Rated Voltage

230V
Network Frequency 50Hz
Technology Type Electronic
Display Type LCD display(LCD 6+2 = 999999.99kWh)
Impulse Constant

3200imp/kWh(LED)
Maximum value measured 99999.99kWh
Tariff input Multi-tariff
Communication port protocol ---
Communication port support RS485/IR /ZIGBEE
Local signalling

------
Number of inputs -------
Number of Outputs --------------
Output voltage 230V
Mounting Mode ---
Mounting Support -----
Connections - terminals

-------
Standards

IEC62052-11/IEC62053-21


Environment
IP degree of protection

IP51
Relative humidity ≤75%
Ambient air temperature for operation -20…65 °C
Ambient Air Temperature for Storage --20…65 °C
Operating altitude ---
Dimensions 120*173.5*55mm
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 57mm
Package 1 Width 175mm
Package 1 Length 122mm
Package 1 Weight 1.000kg

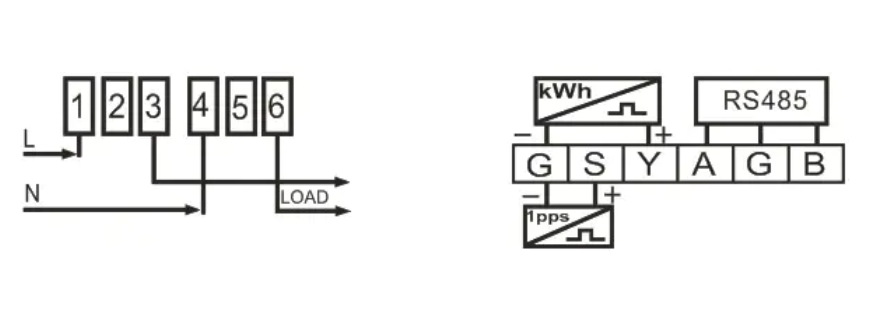

Connection Diagram

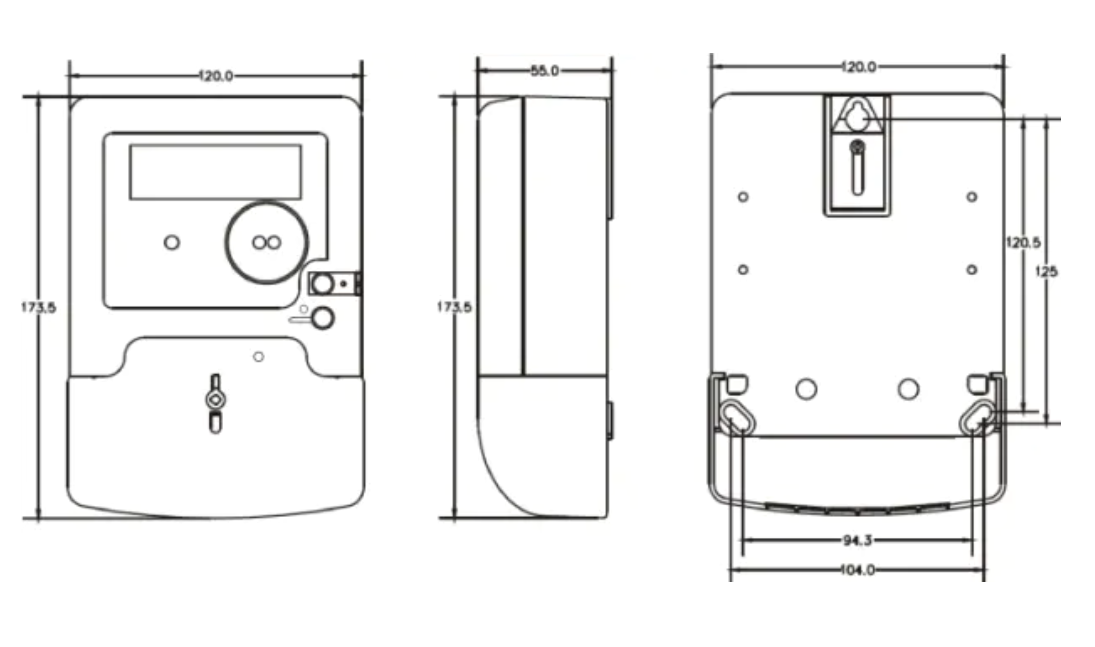

Dimensions
