AI-Enhanced Grid Frequency Regulation System Design for Commercial & Industrial Energy Storage Systems

Dyson

06/21/2025

As renewable energy penetration rises in modern power systems and load variability grows increasingly complex, instability issues—especially frequency fluctuations—have become more prominent. Intelligent commercial and industrial energy storage systems address this challenge by leveraging AI to boost grid - frequency regulation efficiency and accuracy. They enable real - time frequency monitoring, millisecond - level charge/discharge responses, intelligent scheduling with continuous optimization, and adapt to complex operating conditions—strengthening grid stability and ensuring safe, reliable power system operation.

1 Demand Analysis
1.1 Functional Requirements

When designing grid - frequency regulation systems for intelligent commercial/industrial energy storage, the first step is defining core functions to ensure timely, accurate responses to grid frequency changes and maintain stability. Key requirements include:

Real - Time Frequency Monitoring: Equip high - precision sensors to capture minute frequency shifts and transmit data to the central processing unit instantly.
Rapid Charge/Discharge Response: Achieve millisecond - level response to frequency changes by adjusting charge/discharge power to offset deviations.
Intelligent Scheduling Algorithms: Deploy advanced models (fuzzy logic, genetic algorithms, deep learning) for smart charge/discharge decisions—balancing regulation effectiveness and energy efficiency.
Grid Operator Communication Interface: Provide standardized interfaces for seamless integration with grid dispatch centers to receive regulation commands and report system status.

1.2 Performance Requirements

To ensure the efficiency and reliability of the grid frequency regulation system for intelligent commercial and industrial energy storage systems, the following performance indicators must be met:

Response Time: The time from when the system receives a frequency deviation signal to when it starts adjusting the charging/discharging state shall not exceed 100 milliseconds, enabling a rapid response to grid frequency changes.
Frequency Regulation Precision: After frequency deviation compensation, the grid frequency should stay within ±0.01Hz of the target frequency, ensuring the stability of the power system and power supply quality.
System Reliability: The system must have high reliability and fault tolerance. It should maintain normal operation even under extreme weather or sudden situations, with the annual average downtime not exceeding 2 hours.
Adaptability: The system should automatically adjust the frequency regulation strategy under different load conditions (e.g., peak periods, off - peak periods). This ensures effective participation in grid frequency regulation in any situation, enhancing the grid’s flexibility and resilience. Additionally, the system should have a certain degree of scalability and upgradeability to adapt to future power market and technological development needs.

2 AI - Powered Design for Grid Frequency Regulation System
2.1 Real - Time Monitoring & Prediction Module

This module, a cornerstone of intelligent C&I energy storage systems, employs advanced ML algorithms to monitor grid frequencies in real - time and predict trends. It enables proactive decision - making for frequency regulation through:

High - precision sensors at grid nodes collecting real - time frequency data, transmitted to the CPU.

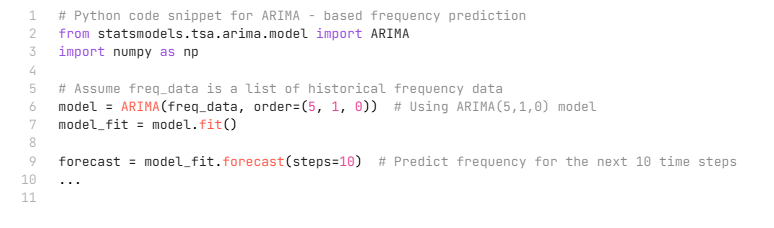

Time - series models (ARIMA/LSTM) trained on historical data to identify patterns and periodicities.
Predictive analytics forecasting frequency trends （seconds to minutes ahead） based on current/historical states, guiding storage system strategies.

2.2 Rapid - Response Charge - Discharge Control Module

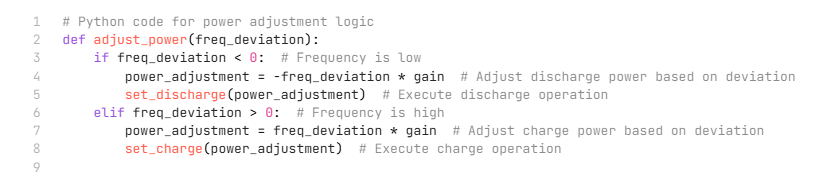

This module adjusts the energy storage system’s charge - discharge states in real - time based on grid frequency changes and predictions, using intelligent algorithms (PID/fuzzy logic) to dynamically control power and stabilize grid frequency.

Low - frequency response: Triggers energy injection via storage unit discharge.
High - frequency response: Absorbs excess energy through charging.
Millisecond - level speed: Relies on RTOS for instant command delivery, with closed - loop feedback to monitor and adjust strategies until frequency normalizes.

2.3 Intelligent Scheduling & Optimization Module

A critical part of intelligent commercial energy storage systems, this module uses AI to optimize scheduling strategies—balancing frequency regulation effectiveness and economic costs. By applying machine learning (genetic algorithms, particle swarm optimization, deep learning), it predicts grid load demands and renewable energy output to create optimal charge - discharge plans. Below is a simplified code example using genetic algorithms for optimization:

2.4 System Self - adaptation and Learning Module

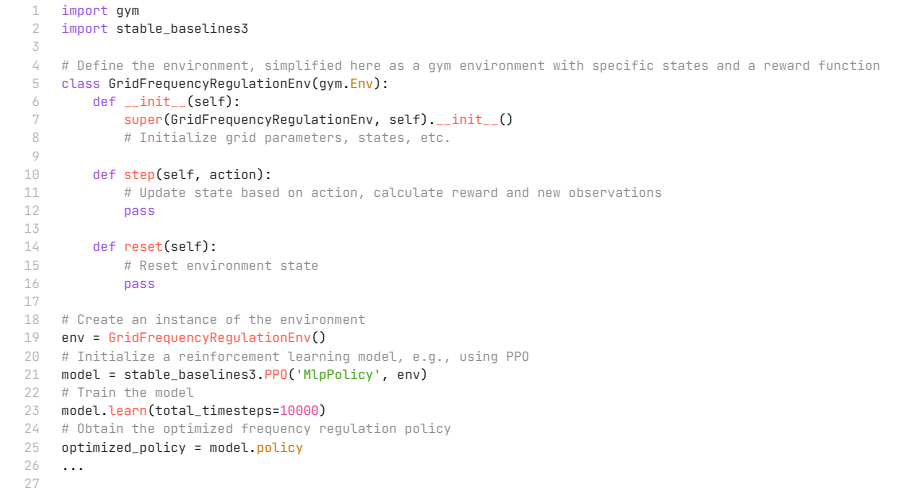

The system self - adaptation and learning module is another key component of the intelligent commercial and industrial energy storage system. Leveraging methods like reinforcement learning and deep learning, this module enables the system to self - adjust based on historical and real - time data. This allows it to adapt to the dynamic changes in grid loads and the uncertainties of renewable energy. For instance, reinforcement learning can learn optimal strategies through interactions with the environment. Below is a conceptual code snippet demonstrating how to use reinforcement learning to optimize frequency regulation decisions:

3 Hardware Design
3.1 Server Configuration

The core computing of the grid frequency regulation system for intelligent commercial and industrial energy storage relies on high - performance servers. These ensure efficient real - time data analysis, AI algorithm operation, and rapid processing of large - scale data. Given the need to handle massive real - time and historical data, and perform complex calculations and model training, server configurations are as follows:

Processor: Intel Xeon Platinum 8380 or equivalent CPU (high core count, high frequency for strong parallel processing).
Memory: 128GB–256GB DDR4 ECC (high - speed access, error checking for data integrity).
Storage: NVMe SSD (system disk, fast read/write for OS and app responsiveness) + large - capacity SAS HDD (data disk for historical data storage).
GPU Acceleration: NVIDIA Tesla T4 GPU (for compute - intensive tasks like deep learning, accelerating model training/prediction).
Network Interface: 10GbE network card (high - speed data transfer for real - time communication).

3.2 Storage Device Configuration

To support real - time decision - making and historical data analysis, storage devices need high read/write speeds and large capacities:

System Disk: 1TB NVMe SSD (low latency, high IOPS for fast OS/app startup).
Data Storage Disk: 10TB SAS HDD (stores historical frequency data, electricity price info, system logs for analysis/auditing).
Backup & Disaster Recovery: RAID 5/6 arrays (data redundancy to prevent single - point failure data loss); regular off - site backups to remote data centers (ensures data security).

3.3 Network Device Configuration

Network device selection directly impacts real - time data transmission and security. For the grid frequency regulation system of intelligent commercial energy storage, recommendations include:

Core Switch: Cisco Catalyst 9500 series (or equivalent) with 100GbE ports for high - speed, high - bandwidth data exchange.
Firewall: Next - gen solutions (e.g., Fortinet FortiGate) for intrusion detection, virus protection, and application control to secure the network.
VPN: Encrypted VPN tunnels for secure remote O&M and communication with grid operators, protecting sensitive data from interception/tampering.

3.4 I/O Device Configuration

To enable data collection and human - machine interaction, high - performance I/O devices ensure accurate data capture and intuitive display:

Sensors: High - precision current/voltage transformers at key grid nodes, monitoring frequency/voltage/current with ≥1kHz sampling rates.
Display Terminal: Large - size, high - resolution industrial touchscreens for system status monitoring and manual operations.
Communication Interfaces: Standard interfaces (RS - 485, Ethernet, fiber) for stable connectivity with external devices/systems.
Alarm System: Integrated audio - visual alarms triggering on anomalies (e.g., frequency violations, equipment faults) to prompt operator intervention.

5 Conclusion

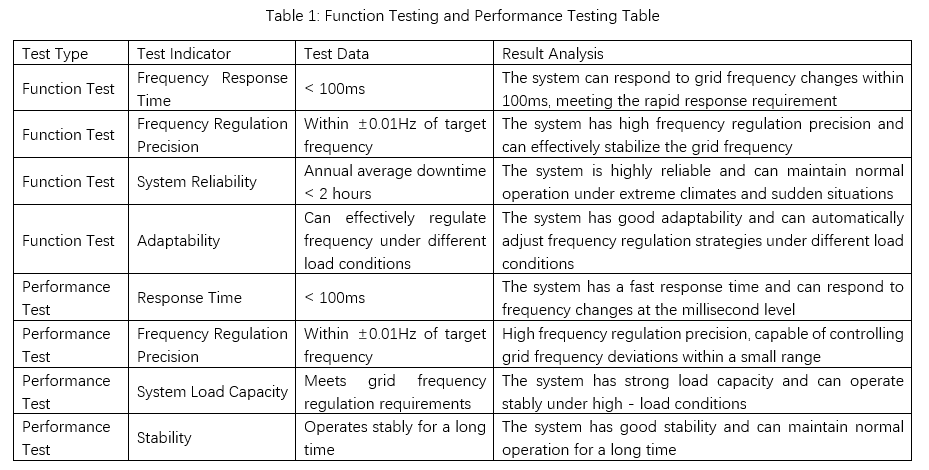

This paper introduces the design of a grid frequency regulation system for intelligent commercial and industrial energy storage systems, covering demand analysis, functional design, hardware design, and operation testing. Leveraging artificial intelligence technologies, the system enables real - time grid frequency monitoring and rapid response, enhancing the stability and reliability of the power grid.
