Advanced Solutions for Single Phase Distribution Transformers in the US Market

ROCKWILL

06/19/2025

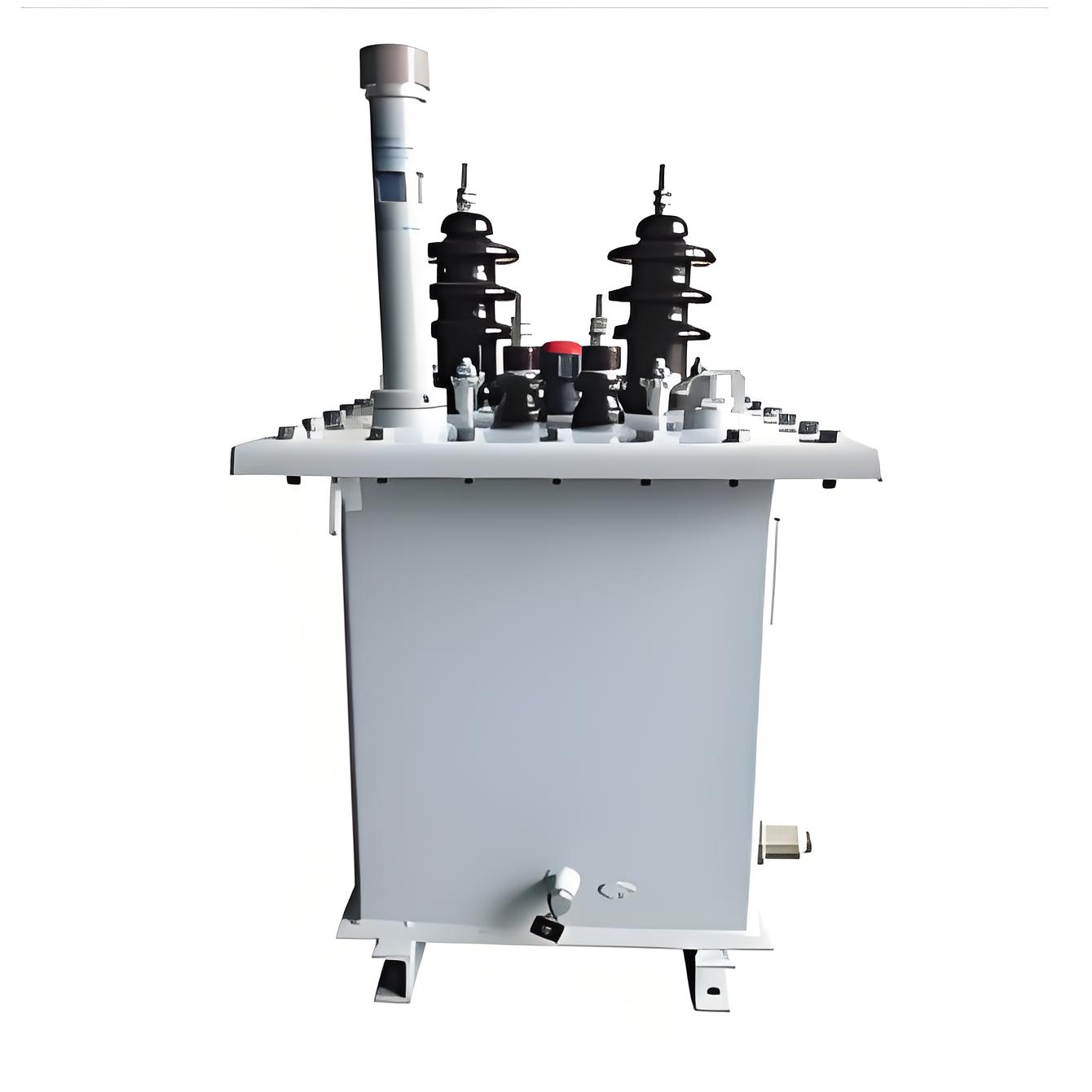

Ⅰ. Characteristics of the U.S. Power System & Technical Requirements for Single-Phase Transformers

The U.S. power system utilizes a 480V/277V three-phase four-wire system as the primary power supply standard for commercial facilities, while residential applications adopt a 120V/240V single-phase three-wire system.

Technical Parameters:

Input Voltage: Must cover a fluctuation range of ±10% (e.g., 277V ±27.7V).
Output Voltage Accuracy: Controlled within ±3%.
Insulation System: Must meet Class H (180°C temperature resistance) standards and pass UL1446 Insulation System Certification.
Overload Capacity: Sustain 120% rated load for 1 hour.
Energy Efficiency: Per the DOE 2024 Final Rule (G/TBT/N/USA/682/Rev.1/Add.2), efficiency standards for single-phase dry-type distribution transformers range from 98.31% (15kVA) to 99.42% (1000kVA), achieving 35% energy savings compared to traditional products.

Material Selection:

Core Material: Iron-based amorphous alloy is preferred to reduce no-load losses. Experimental data show that under identical conditions, amorphous alloy cores reduce core losses by 70–80% compared to silicon steel cores. For a 10kVA transformer, this saves ~1,000 kWh annually.
Winding Material: High-purity oxygen-free copper wire (conductivity ≥100% IACS), reducing resistive losses by 15% versus standard copper.
Insulation Material: For medical devices, polyimide film (Class C) and silicone organic paint ensure leakage currents below 50μA (CF-type) or 0.5mA (BF-type).

II. UL Certification & U.S. Market-Specific Requirements

UL Certification is a critical barrier to U.S. market entry:

UL 5085 Standard: Covers transformers for industrial control equipment, including electrical safety, overload protection, short-circuit protection, and temperature rise limits.
DOE 2024 Energy Conservation Standards: Require higher efficiency, projected to save 1.71 quadrillion BTU over 30 years.

U.S. Market Demands:

Safety:

UL 5085 mandates robust insulation and multi-protection mechanisms (over/under-voltage, overcurrent, overtemperature).
Medical devices must comply with FDA Class II standards (leakage current: CF-type ≤50μA, BF-type ≤0.5mA).

Efficiency:

NEMA TP2 standards emphasize real-world operating efficiency.
DOE forecasts 1.1% CAGR load growth by 2033, with winter/summer peak loads rising by 91GW/79GW, respectively.

Environmental Adaptability:

Commercial buildings (e.g., hotels, data centers): Noise ≤45dB.
Industrial scenarios: IP54 protection and strict temperature control (ΔT ≤55K @ full load).

Installation & Maintenance:

Modular designs with pluggable terminals reduce on-site maintenance time by 70%.
Installation must avoid flammable/explosive materials and water sources, ensuring adequate ventilation.

III. High-Efficiency Single-Phase Distribution Transformer Design

Design Element	U.S. Standard	Recommended Solution	Performance Advantage
Core Material	Low no-load loss	Iron-based amorphous alloy	70–80% lower no-load loss vs. silicon steel
Winding Design	Mechanical strength	Layered multi-strand winding	Enhanced strength & heat dissipation
Insulation System	Class H (180°C)	Polyimide film + silicone paint	Leakage current <0.5mA; medical compliant
Smart Control	Remote monitoring	Modbus RTU/TCP or NB-IoT	Real-time monitoring, fault alerts

IV. Scenario-Based Customized Solutions

Commercial Kitchen Equipment:

Power demand: 10–50kVA; starting current up to 5–7× rated current.
Solution: Amorphous alloy core + layered multi-strand winding.
Compliance: IP54 protection, ambient temperature -25°C to +40°C.
Example: Dishwasher (10–46kW) uses 480V-to-380V transformer with 80% design margin for high-load stability.

Medical Devices:

Safety: Dual insulation + GFI module; leakage current ≤50μA (post-humidity test ≤100μμA).
Example: MRI transformer with ultra-low ripple (<0.1%) to prevent image distortion; complies with FDA Class II and IP65.

Industrial Production Lines:

Reliability: Short-circuit withstand 50kA, noise ≤55dB(A), IP65 protection.
Solution: Reinforced winding + optimized core support + smart cooling fans (energy saving: 10–15%).

Residential Applications:

Power: 500W–2kVA; noise ≤45dB, efficiency ≥98% (Energy Star compliant).
Example: 120V/240V-to-220V transformer with compact design for wall mounting; meets NEC fire-spacing standards (IP20 for dry indoor environments).

V. Why Choose ROCKWILL

Cost & Delivery:

U.S. transformer lead times extend to 120 weeks, with prices up 40–60%.
ROCKWILL’s factory-direct model enables 7-day delivery of UL-certified transformers.

Certification:

Holds both UL 5085 (whole-machine) and UL 1446 (insulation system) certifications, ensuring global recognition.

Flexibility:

Modular designs support three-phase 480V-to-380V or single-phase 220V conversion for diverse needs.
